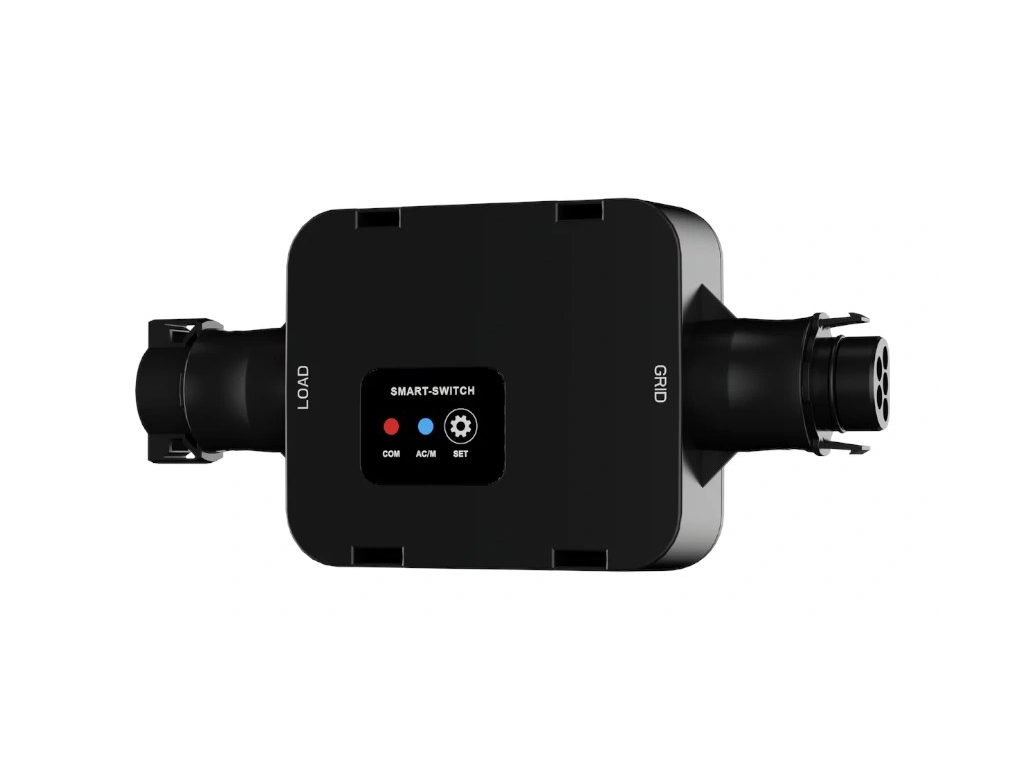

Deye SUN-SMART-SWITCH01P3 Smart Load Switch (LoRa)
Code: SUN-SMART-SWITCH01P3
Related products
Product detailed description
Overview
Deye SUN-SMART-SWITCH01P3 - single/three-phase smart load switch, max 25 A, LoRa wireless. SOC- and time-based control of heat pumps, AC, heaters and pool pumps. IP65.
Key Features
- Smart load switch for single- and three-phase loads, up to 25 A
- LoRa wireless control - works locally without internet
- SOC-threshold and time-schedule based ON/OFF control
- Auto-off in inverter off-grid mode; app/web/LCD/SET-button control
- Ideal for heat pumps, AC, water heaters, pool pumps
- IP65, outdoor-rated, -40 to +45 °C
Technical Specifications
| Connection | L1/N (single phase), L1/L2/L3/N (three phase) |
| Input voltage | 94-238 Vac (phase voltage) |
| Max. current | 25 A |
| Rated frequency | 50 / 60 Hz |
| Communication | LoRa (863-870 MHz, 200 m) |
| Antenna | internal, 1.58 dBi @ 868 MHz |
| Protection rating | IP65 |
| Overvoltage class | Class I |
| Operating temperature | -40 to +45 °C |
| Dimensions (W x H x D) | 96.7 x 204.7 x 37.7 mm |
| Weight | 0.4 kg |
| Certification | IEC/EN 61010-1 |
System Compatibility
Part of the Deye accessory ecosystem for hybrid inverters. Always confirm the exact configuration with the supplier.
Additional parameters
| Category: | Monitoring |
|---|---|
| Weight: | 0.4 kg |
| Brand: | DEYE |
| Lenght: | 37.7 mm |
| Width: | 96.7 mm |
| Height: | 204.7 mm |
| Degree of protection (IP): | IP65 |
| Communication: | LoRa |
