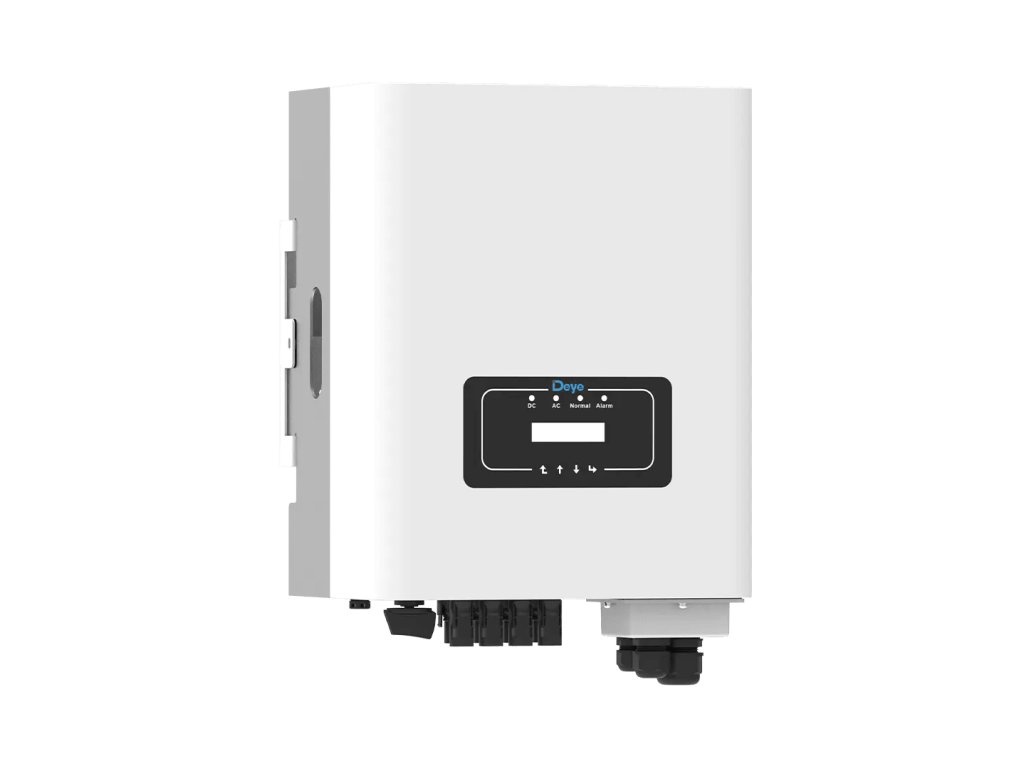

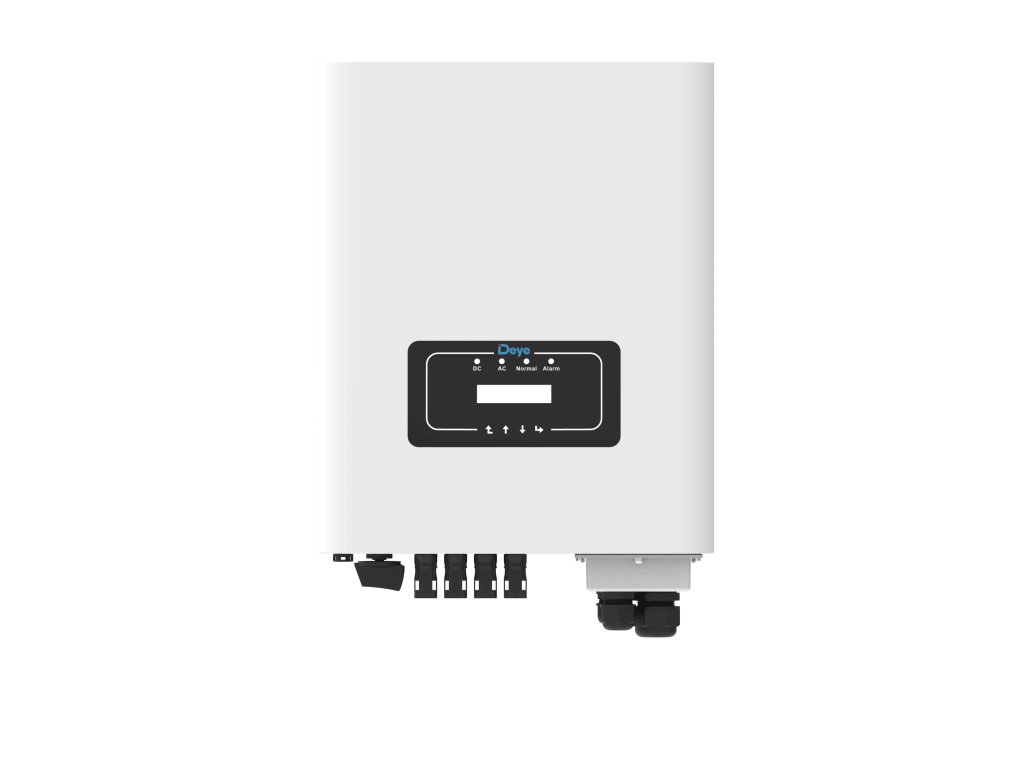

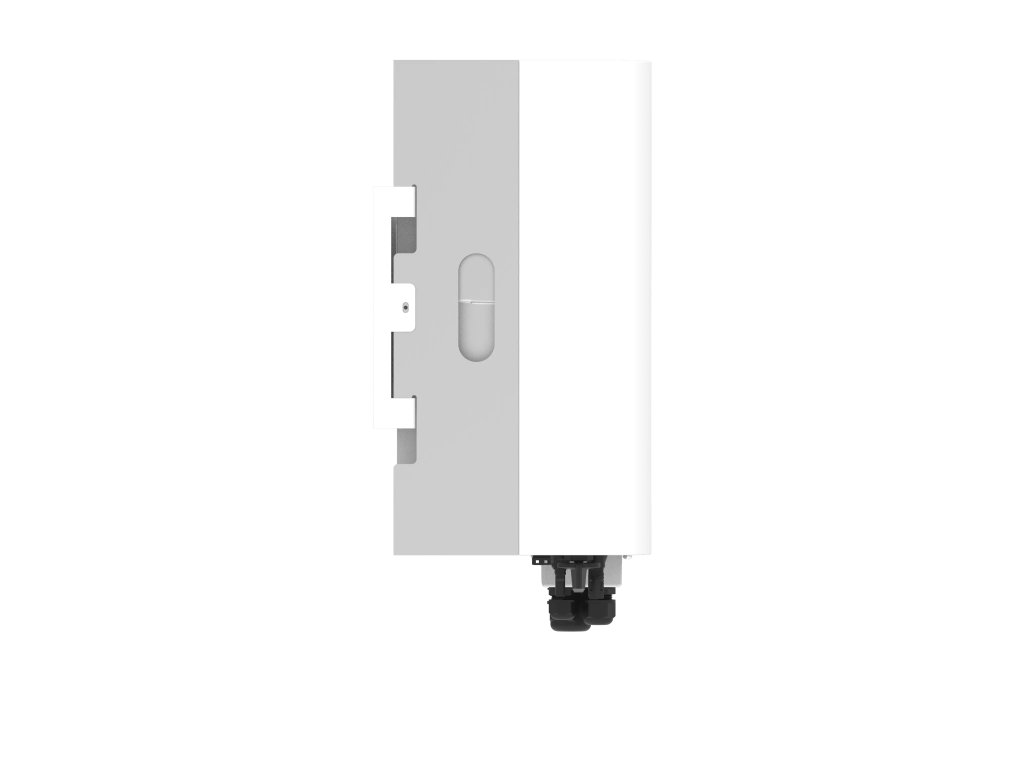

Deye SUN-10K-G02P1-EU-AM2
Code: DEYE-SUN-10K-G02P1-EU-AM2
Product detailed description
Key Features
- High efficiency: achieves maximum efficiency of up to 97.7% thanks to the dual MPPT trackers, ensuring maximum power output from the solar panels.
- Low inrush voltage: It starts at a low voltage of 80 V, allowing optimum performance even in low light conditions.
- Zero Export Application: Supports zero export function, allowing you to manage your energy consumption and maximize your own power consumption.
- VSG application: Enables voltage support functions, contributing to grid stability.
- Smart Chain Monitoring: Offers optional smart chain monitoring for advanced system diagnostics.
- Wide output voltage range: Provides flexible output voltage for compatibility with different network configurations.
- Anti-PID function: Optional anti-PID function helps prevent power degradation caused by PID phenomena in PV modules.
- Comprehensive Protection: Includes DC over-polarity protection, AC output over-current and over-voltage protection, short-circuit protection, thermal protection, and surge protection.
- Monitoring and communication: supports various communication interfaces including GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232 and monitoring modes.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 14.8 kg |
| Brand: | DEYE |
| Lenght: | 213.5 mm |
| Width: | 330 mm |
| Height: | 410 mm |
| Power: | 10000 W |
| Number of phases: | 1 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, RS232 |
| Number of MPPT: | 2 |
| String: | 2+2 |
| Type: | Grid tie |
| Voltage converters - DEYE - Model series: | G02P1-EU-AM2 | 1 Phase | 2 MPPT |
| Nominal voltage: | 230 V |
| Operating voltage: | 70-500 VDC |
| Maximum Output Power: | 11000 VA |
