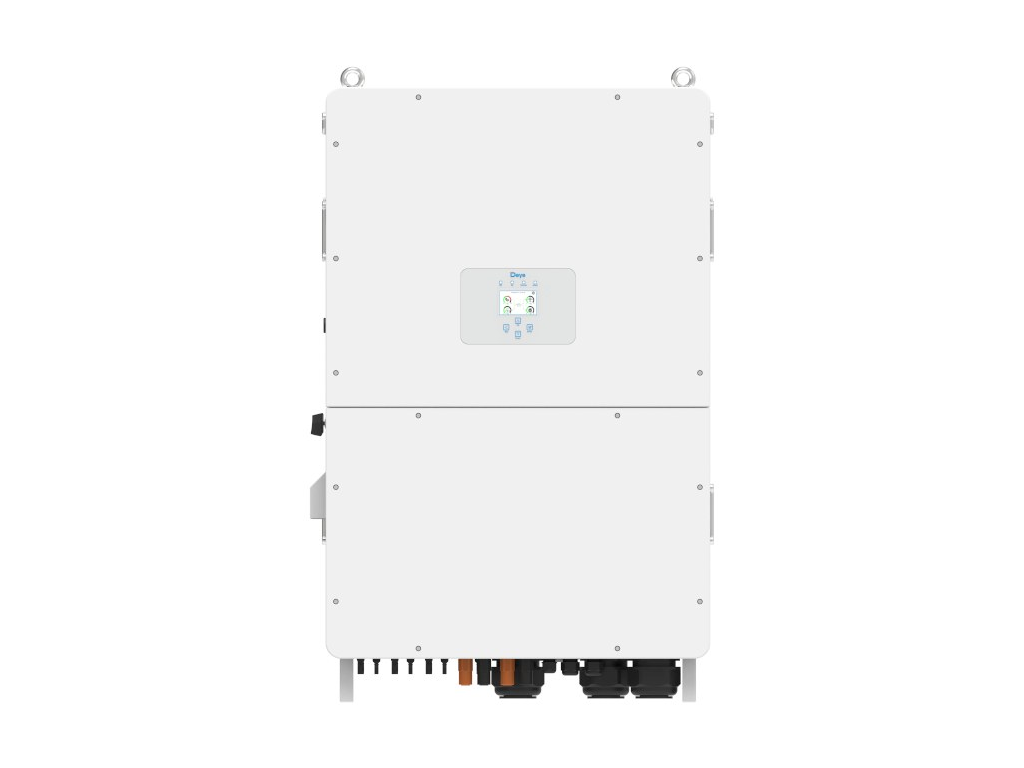

Deye SUN-125K-SG02HP3-EU-GM10 125kW Hybrid HV 3-phase Inverter (10 MPPT)
Code: SUN-125K-SG02HP3-EU-GM10
Related products
Product detailed description
Overview
The Deye SUN-125K-SG02HP3-EU-GM10 is a 125 kW three-phase high-voltage hybrid inverter with ten MPP trackers and dual battery inputs, for large commercial and industrial PV-plus-storage systems.
Key Features
- 125 kW three-phase high-voltage hybrid inverter with 10 MPP trackers
- Dual battery inputs, HV battery 160-1000 V, 200 A charge/discharge
- Max. PV access 250 kW; MPPT range 150-850 V
- 100% unbalanced output; parallel up to 10 units
- Euro efficiency 98.1%; smart cooling
- IP65 for commercial and industrial PV-plus-storage
Technical Specifications
| Rated AC output power | 125 kW |
| Phase | Three-phase (3L+N+PE), 380/400 V |
| Max. PV input power | 200 kW |
| Max. PV access power | 250 kW |
| No. of MPP trackers | 10 |
| Strings per tracker | 2 |
| MPPT voltage range | 150-850 V |
| Rated PV input voltage | 650 V |
| Max. DC input voltage | 1000 V |
| Battery type / voltage | High-voltage Li-ion, 160-1000 V (2 inputs) |
| Max. charge / discharge current | 200 A |
| Rated AC current (in/out) | 189.4/181.2 A |
| Max. AC current (in/out) | 204.6/195.7 A |
| Euro efficiency | 98.1% |
| MPPT efficiency | >99% |
| Communication | RS485 / RS232 / CAN; Wi-Fi/Bluetooth/4G/LAN |
| Protection rating | IP65 |
| Overvoltage category | OVC II (DC) / OVC III (AC) |
| Operating temperature | -40 to +60 °C (derating >45 °C) |
| Cooling | Smart cooling |
| Noise | <65 dB(A) |
| Dimensions (W x H x D) | 734 x 1091 x 344 mm |
| Weight | to be confirmed |
| Warranty | 5 / 10 years |
Compatible Batteries
Requires a high-voltage (160-1000 V) battery system (e.g. Deye BOS-G / GB-L, Dyness HV, Pylontech, BYD HVS/HVM). Always confirm the exact model with the supplier.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 110 kg |
| Brand: | DEYE |
| Lenght: | 344 mm |
| Width: | 734 mm |
| Height: | 1091 mm |
| Power: | 125000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, CAN |
| Number of MPPT: | 10 |
| Type: | Hybrid |
| Voltage converters - DEYE - Model series: | SG02HP3-EU-GM10 | 3 Phase | 10 MPPT |
| Nominal voltage: | 400 V |
| Operating voltage: | 150-850 VDC |
