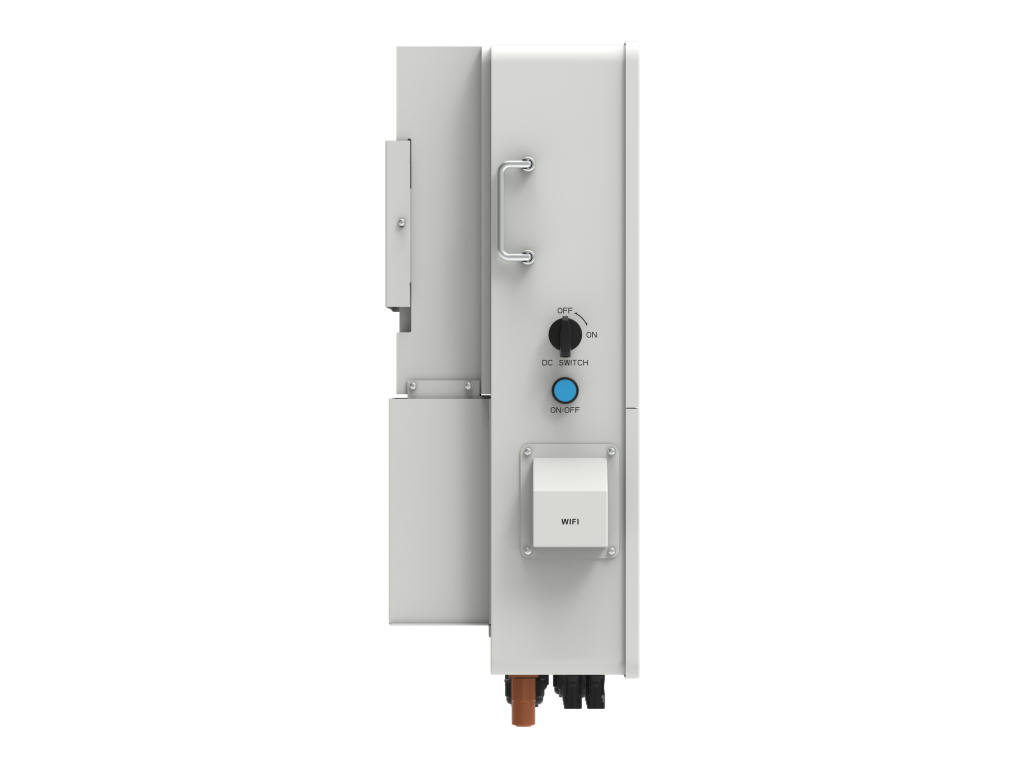

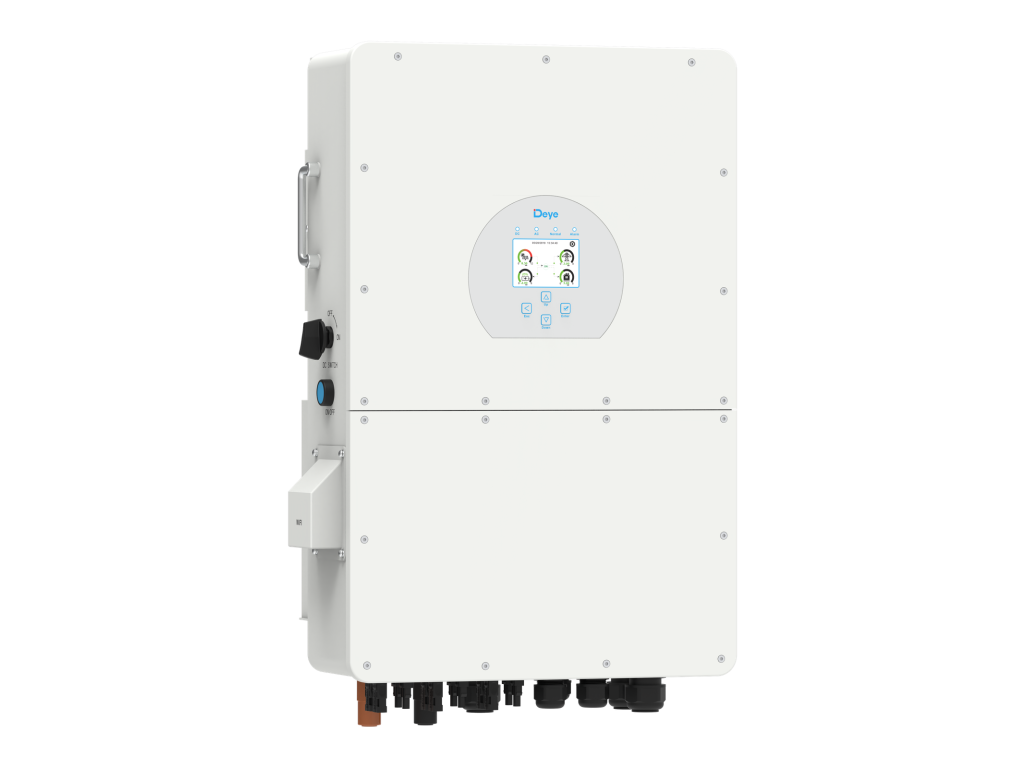

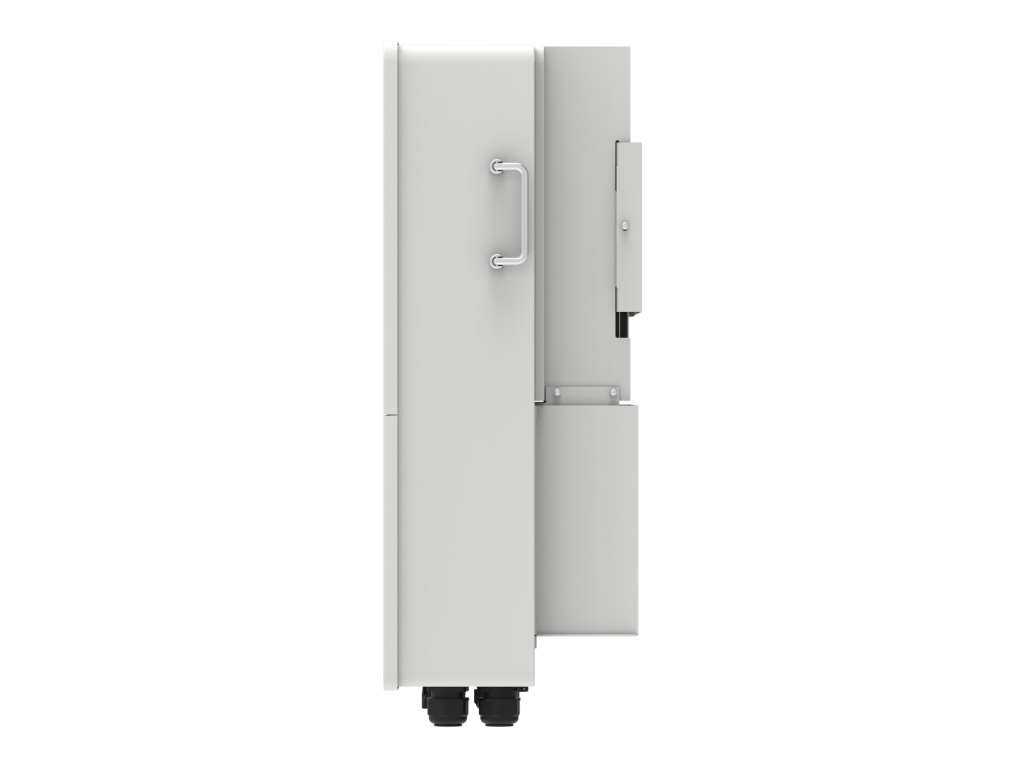

Deye SUN-30K-SG02HP3-EU-AM3 30kW Hybrid HV 3-phase inverter
Code: SUN-30K-SG02HP3-EU-AM3
Product detailed description
Overview
The Deye SUN-30K-SG02HP3-EU-AM3 is a 30 kW three-phase high-voltage hybrid inverter with three MPP trackers and up to 98.5% efficiency. Built for commercial PV-plus-storage systems, it supports 100% unbalanced output and parallel operation.
Key Features
- 30 kW three-phase hybrid inverter, high-voltage battery (160-700 V)
- 3 MPP trackers (2+2+2 strings), max. DC input voltage 1000 V, MPPT range 150-850 V
- Max. battery charge / discharge current 75 A
- 100% unbalanced output; AC coupling to retrofit existing PV systems
- Parallel operation for on-grid and off-grid; diesel-generator input supported
- Max. efficiency 98.5%, IP65 for indoor and outdoor installation
Technical Specifications
| Rated AC output power | 30 000 W |
| Max. AC apparent power | 33000 VA |
| Phase | Three-phase (3L+N+PE), 400 V |
| Max. PV input power | 48 000 W |
| Max. DC input voltage | 1000 V |
| MPP trackers / strings | 3 / 2+2+2 |
| MPPT voltage range | 150-850 V |
| Battery type / voltage | High-voltage Li-ion, 160-700 V |
| Rated / max AC current (in/out) | 45.5/43.5 A / 50/47.9 A |
| Max. charge / discharge current | 75 A |
| Max. efficiency | 98.5% (Euro 98.0%) |
| Communication | Wi-Fi / RS485 / CAN |
| Protection rating | IP65 |
| Operating temperature | -40 to +60 °C |
| Dimensions (W x H x D) | 448 x 688 x 270 mm |
| Weight | 46 kg |
| Warranty | 5 / 10 years |
Compatible Batteries
Requires a high-voltage (160-700 V) battery system. Per Deye's official Approved Battery List, the SG02HP3 series is compatible with Deye BOS-G / GB-L, Dyness HV, Pylontech, BYD HVS/HVM and other approved HV systems. See the attached HV Battery Compatibility List; always confirm the exact model with the supplier.
Applications
- Commercial and large-residential solar self-consumption with storage
- Backup power and off-grid operation; parallel scaling
- Retrofit AC coupling of existing PV installations
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 46 kg |
| Brand: | DEYE |
| Lenght: | 270 mm |
| Width: | 448 mm |
| Height: | 688 mm |
| Power: | 30000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, CAN, Wi-Fi |
| Number of MPPT: | 3 |
| String: | 2 + 2 + 2 |
| Type: | Hybrid |
| Voltage converters - DEYE - Model series: | SG02HP3-EU-AM3 | 3 Phase | 3 MPPT |
| Nominal voltage: | 400 V |
| Operating voltage: | 150-850 VDC |
| Maximum Output Power: | 33000 VA |
-
Deye SG02HP3-EU-AM3 Hybrid Inverter Datasheet (PDF)
-
Deye SG02HP3-EU-AM3 Hybrid Inverter User Manual (PDF)
-
Deye HV Battery Compatibility List (PDF)
