    Home / Photovoltaics / Inverters / Deye SUN-40K-SG01HP3-EU-BM4 40kW Hybrid HV 3-phase inverter

    Deye SUN-40K-SG01HP3-EU-BM4 40kW Hybrid HV 3-phase inverter

    Code: SUN-40K-SG01HP3-EU-BM4
    Not rated Rating details

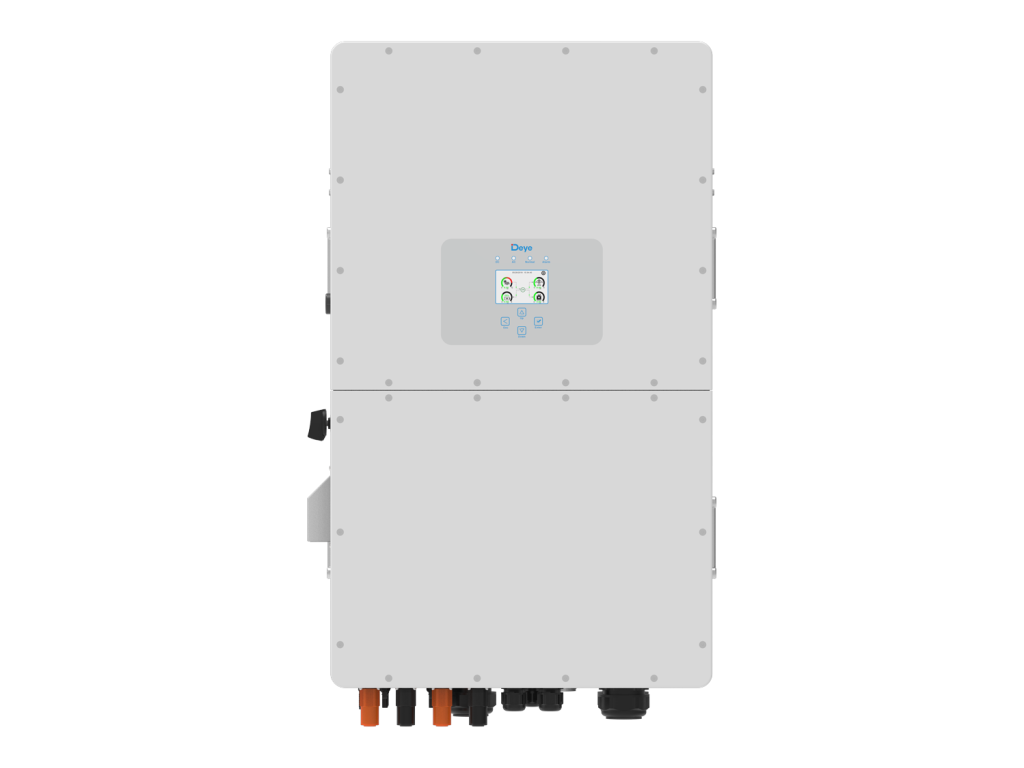

    Front view
    €0 €0 incl. VAT
    On request
    40 kW three-phase high-voltage hybrid inverter with 4 MPP trackers and dual battery inputs, for larger commercial PV-plus-storage systems.

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Related products

    Front view
    Deye SUN-50K-SG01HP3-EU-BM4 50kW Hybrid HV 3-phase inverter
    On request
    €0 incl. VAT
    €0
    SUN-50K-SG01HP3-EU-BM4

    Product detailed description

    Overview

    The Deye SUN-40K-SG01HP3-EU-BM4 is a 40 kW three-phase high-voltage hybrid inverter with four MPP trackers and dual battery inputs. Built for larger commercial PV-plus-storage systems, it delivers high efficiency and strong over-load capability.

    Key Features

    • 40 kW three-phase hybrid inverter, high-voltage battery (160-800 V)
    • 4 MPP trackers (2+2+2+2 strings), max. DC input voltage 1000 V, MPPT range 150-850 V
    • 2 battery inputs, max. charge / discharge current 50+50 A
    • 100% unbalanced output; AC coupling to retrofit existing PV systems
    • Parallel operation for on-grid and off-grid; diesel-generator input supported
    • Max. efficiency 97.6%, IP65 for indoor and outdoor installation

    Technical Specifications

    Rated AC output power40 000 W
    Max. AC apparent power44000 VA
    PhaseThree-phase (3L+N+PE), 400 V
    Max. DC input power52 000 W
    Max. DC input voltage1000 V
    MPP trackers / strings4 / 2+2+2+2
    MPPT voltage range150-850 V
    Battery type / voltageHigh-voltage Li-ion, 160-800 V (2 inputs)
    Rated / max AC current (in/out)60.7/58 A / 66.7/63.8 A
    Max. charge / discharge current50 + 50 A
    Max. efficiency97.6% (Euro 97.0%)
    CommunicationWi-Fi / RS485 / CAN
    Protection ratingIP65
    Operating temperature-40 to +60 °C
    Dimensions (W x H x D)527 x 894 x 294 mm
    Weight80 kg
    Warranty5 / 10 years

    Compatible Batteries

    Requires a high-voltage (160-800 V) battery system. Per Deye's official Approved Battery List, the SG01HP3 series is compatible with Deye BOS-G / GB-L, Dyness HV / Tower / Orion, Pylontech Powercube / Force-H, BYD Battery-Box HVS / HVM and other approved HV systems. See the attached HV Battery Compatibility List; always confirm the exact model with the supplier.

    Applications

    • Commercial and large-residential solar self-consumption with storage
    • Backup power and off-grid operation; parallel scaling
    • Retrofit AC coupling of existing PV installations

    Additional parameters

    Category: Solar inverters
    Weight: 80 kg
    Brand: DEYE
    Lenght: 294 mm
    Width: 527 mm
    Height: 894 mm
    Power: 40000 W
    Number of phases: 3
    Degree of protection (IP): IP65
    Communication: RS485, CAN, Wi-Fi
    Number of MPPT: 4
    String: 2 + 2 + 2 + 2
    Type: Hybrid
    Voltage converters - DEYE - Model series: SG01HP3-EU-BM4 | 3 Phase | 4 MPPT
    Nominal voltage: 400 V
    Operating voltage: 150-850 VDC
    Maximum Output Power: 44000 VA
