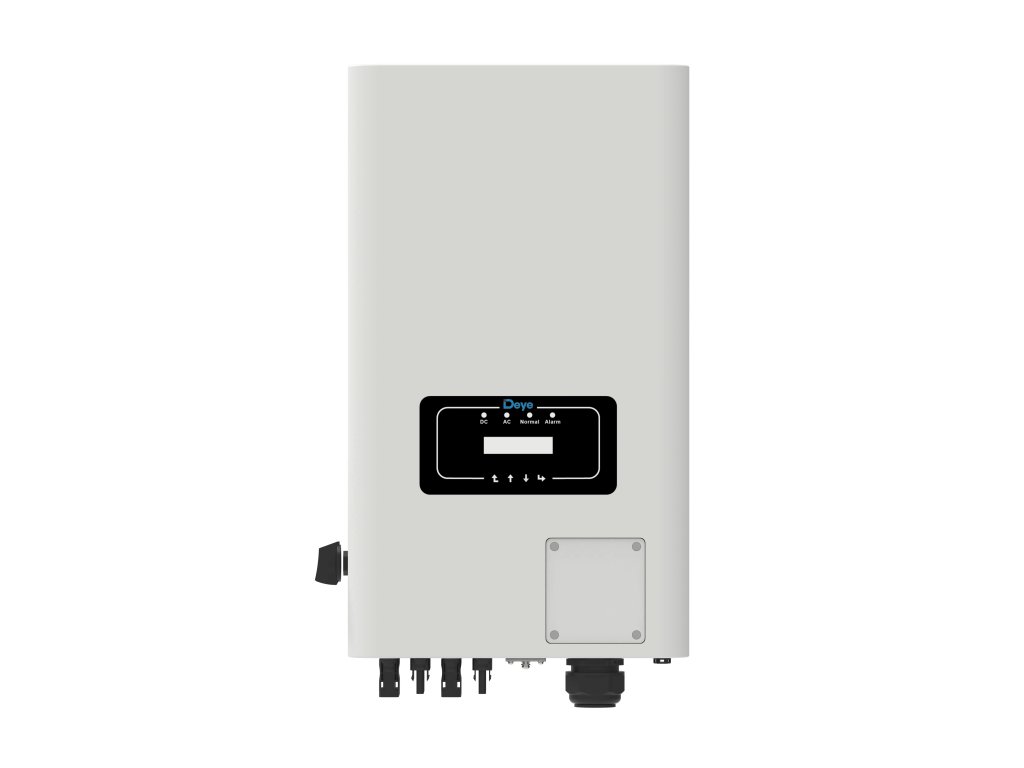

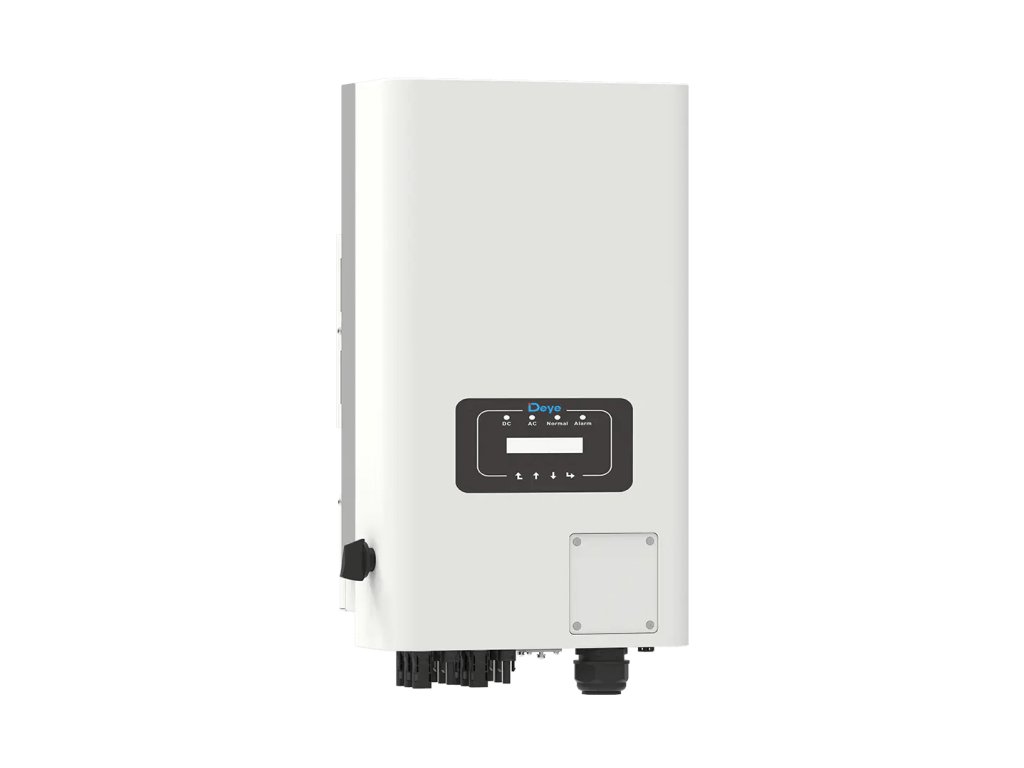

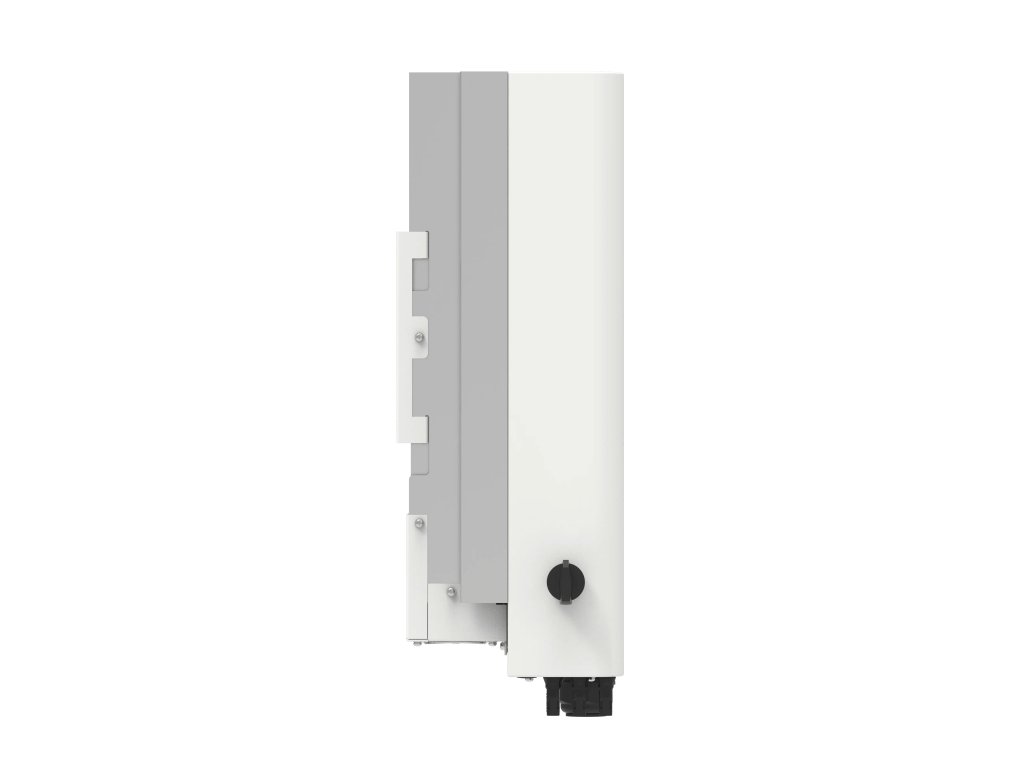

Deye SUN-18K-G04-LV
Code: DEYE-SUN-18K-G04-LV
Product detailed description
Key Features
- High Efficiency: With a maximum efficiency of 98.6%, it maximizes the energy harvesting from solar panels.
- Dual MPP Trackers: Two independent MPPT (Maximum Power Point Tracking) trackers ensure optimal power generation from different PV string configurations.
- Wide Output Voltage Range: Operates with a wide output voltage range of 127V/220V and 133V/230V, adapting to different grid configurations.
- Anti-PID Function (Optional): Reduces power degradation caused by potential degradation (PID).
- Zero Export Application: Enables self-consumption of solar energy, reducing grid dependency.
- VSG Application: Provides grid support by acting as a Virtual Synchronous Generator (VSG).
- Intelligent String Monitoring (Optional): Provides detailed monitoring of each string for optimal system performance.
- Comprehensive Protection Functions: Includes DC reverse polarity protection, AC output overcurrent and overvoltage protection, short circuit protection, thermal protection, and more.
- Monitoring and Communication: Offers various communication options such as GPRS, WIFI, Bluetooth, 4G, and LAN (optional) for remote monitoring and control.
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 23 kg |
| Brand: | DEYE |
| Lenght: | 215 mm |
| Width: | 362 mm |
| Height: | 577 mm |
| Power: | 18000 W |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| Communication: | RS485, Wi-Fi, LAN, 4G, Bluetooth, RS232, GPRS |
| Number of MPPT: | 2 |
| String: | 3+3 |
| Type: | Grid tie |
| Voltage converters - DEYE - Model series: | G04 | 3 Phase | 2 MPPT | Low Voltage |
| Nominal voltage: | 230 V, 133 V |
| Operating voltage: | 200 - 700 VDC |
| Maximum Output Power: | 18000 VA |
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Be the first who will post an article to this item!
Deye (Ningbo Deye Technology Co., Ltd.) is a globally recognized manufacturer of solar inverters and energy storage solutions, serving residential, commercial, and utility-scale markets in over 100 countries. The company's extensive product range includes hybrid inverters, on-grid and off-grid inverters, microinverters, and integrated battery systems, all engineered for maximum efficiency and reliability.
With a strong commitment to intelligent, energy-efficient technology, Deye has earned its reputation as one of the fastest-growing inverter brands worldwide. Their products combine advanced MPPT algorithms, user-friendly monitoring, and robust build quality, making them a trusted choice for solar professionals and homeowners alike.
