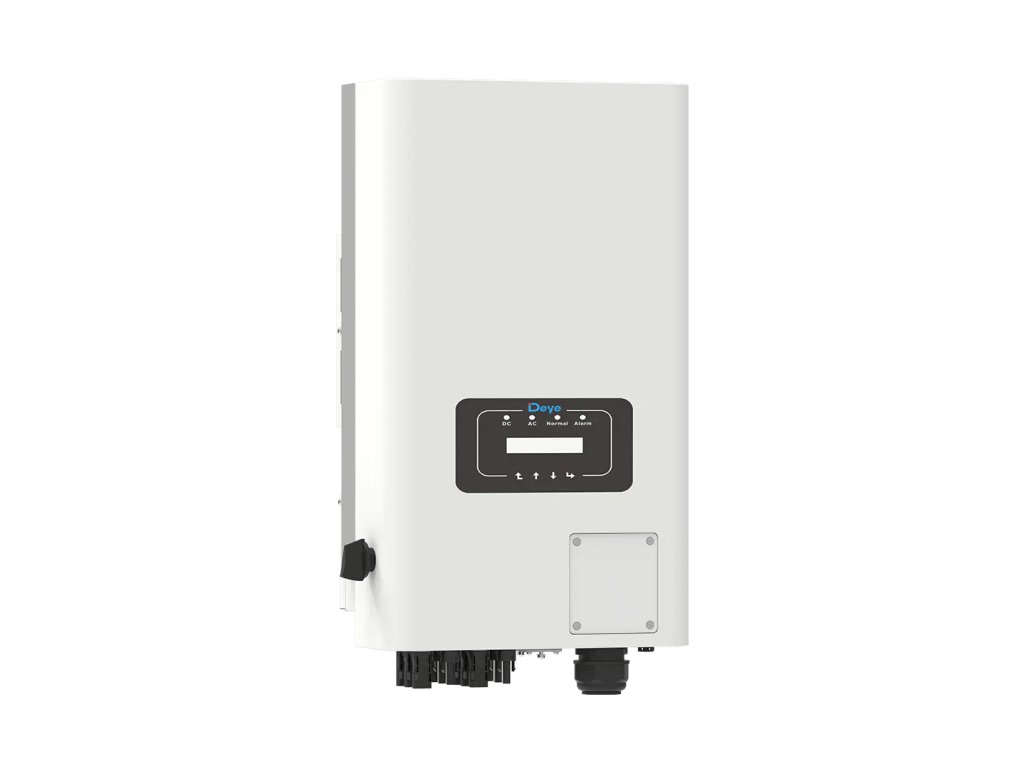

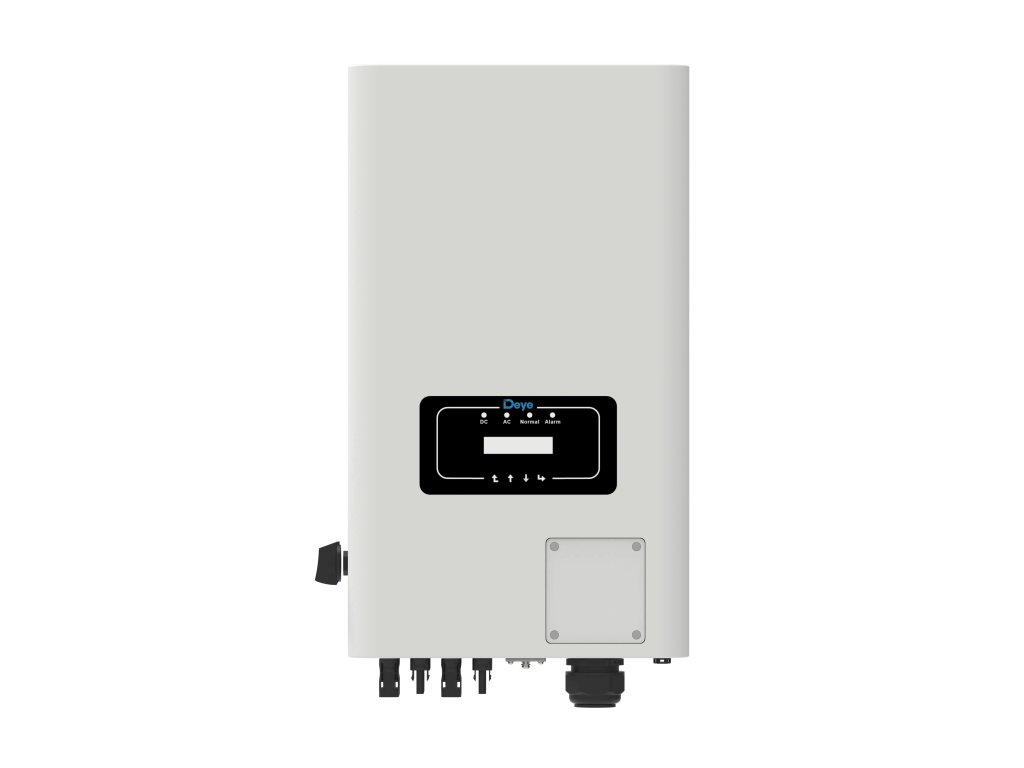

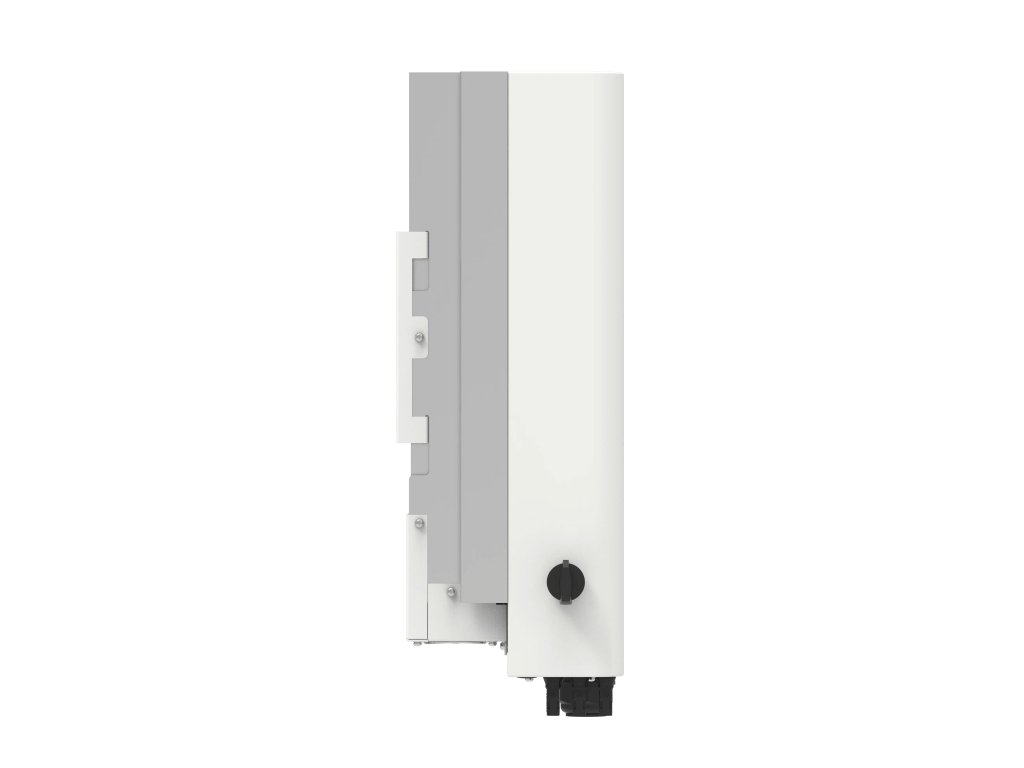

Deye SUN-30K-G04

Product detailed description

Key Features

• High Efficiency: The SUN-(30-36)K-G04 series boasts a maximum efficiency of up to 98.6%, ensuring that more of the solar energy captured is converted into usable energy. In addition, it features a European efficiency of 98.1%, making it one of the most efficient inverters available on the market.
• Versatile input options: With a maximum input power of photovoltaic devices from 39 kW to 46.8 kW, these inverters can handle significant power requirements. A wide MPPT (Maximum Power Point Tracking) voltage range of 200 V to 850 V allows for flexible design options and compatibility with various types of solar panels. In addition, the inverters can start operating at a low voltage of 250 V, which increases their operational flexibility.
• Advanced protection mechanisms: The Deye SUN-(30-36)K-G04 series is equipped with comprehensive protection features to ensure the safety and long life of the system. These include DC reverse polarity protection, AC overcurrent and overvoltage protection, overvoltage protection (Type II), and short circuit protection. In addition, the inverters are equipped with advanced monitoring functions such as ground fault current monitoring, islanding protection and ground fault detection.
• Robust and reliable design: These inverters are built to withstand harsh environmental conditions with a wide temperature range from -25°C to 60°C, with derating above 45°C. The inverters are also designed to resist dust and water ingress with IP65 protection, ensuring reliable performance in a variety of outdoor conditions. The allowable altitude is up to 4,000 meters, making them suitable for installations in high-altitude areas.
• Efficient cooling system: The intelligent air cooling system ensures optimal thermal management, prevents overheating and maintains efficiency under high loads. This feature significantly extends the inverter’s lifespan and ensures stable performance over time.
• Advanced Communication Capabilities: The SUN-(30-36)K-G04 series supports multiple communication interfaces including RS485 and RS232 and offers optional communication modules such as GPRS, WiFi, Bluetooth, 4G and LAN. These capabilities enable seamless integration with monitoring systems and facilitate remote management and diagnostics.
• Standards and Compliance: The inverters comply with a number of international and regional standards including IEC 61727, IEC 62116, CEI 0-21, EN 50549 and various others, ensuring their reliability and integration with various grid requirements worldwide.
