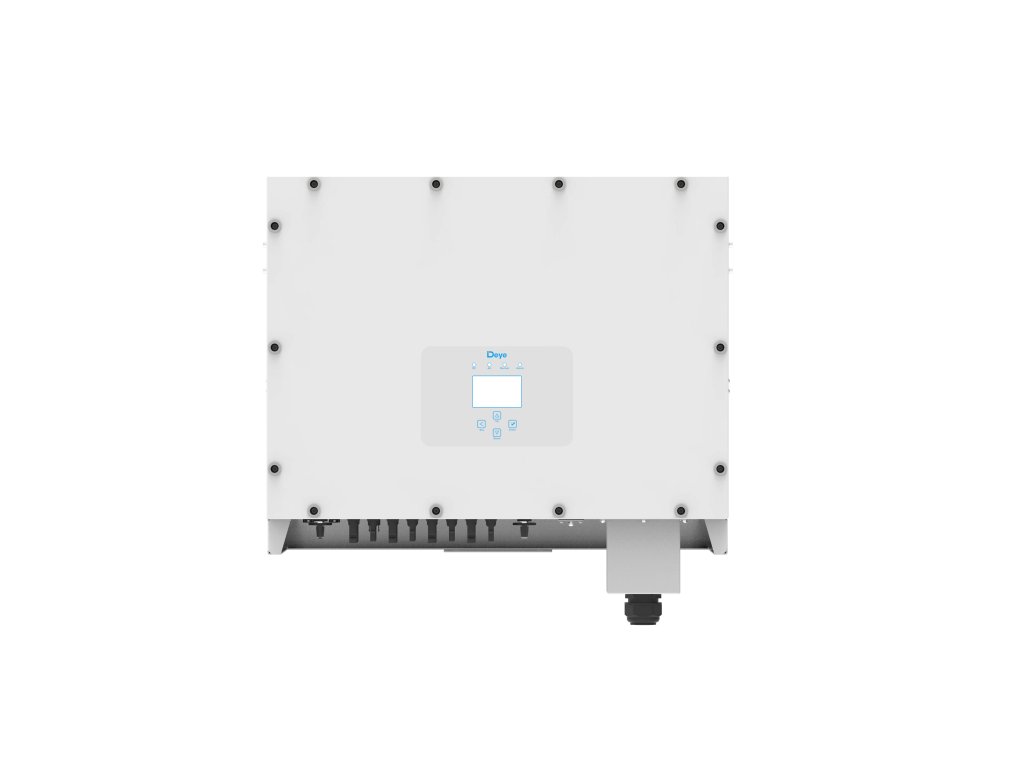

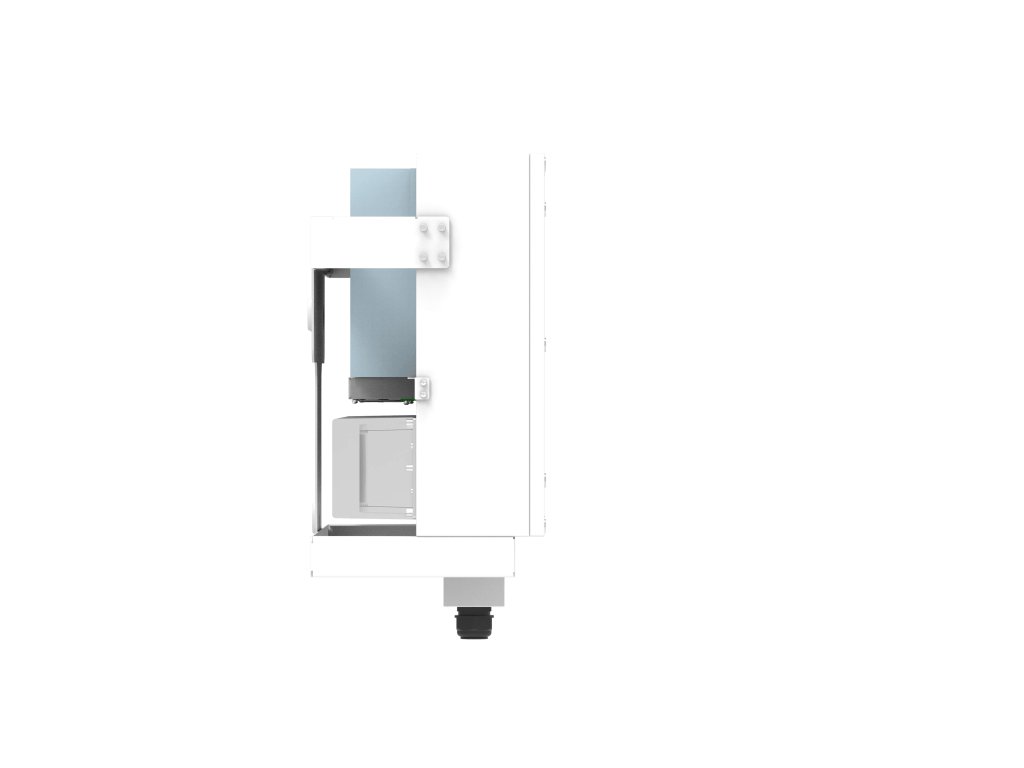

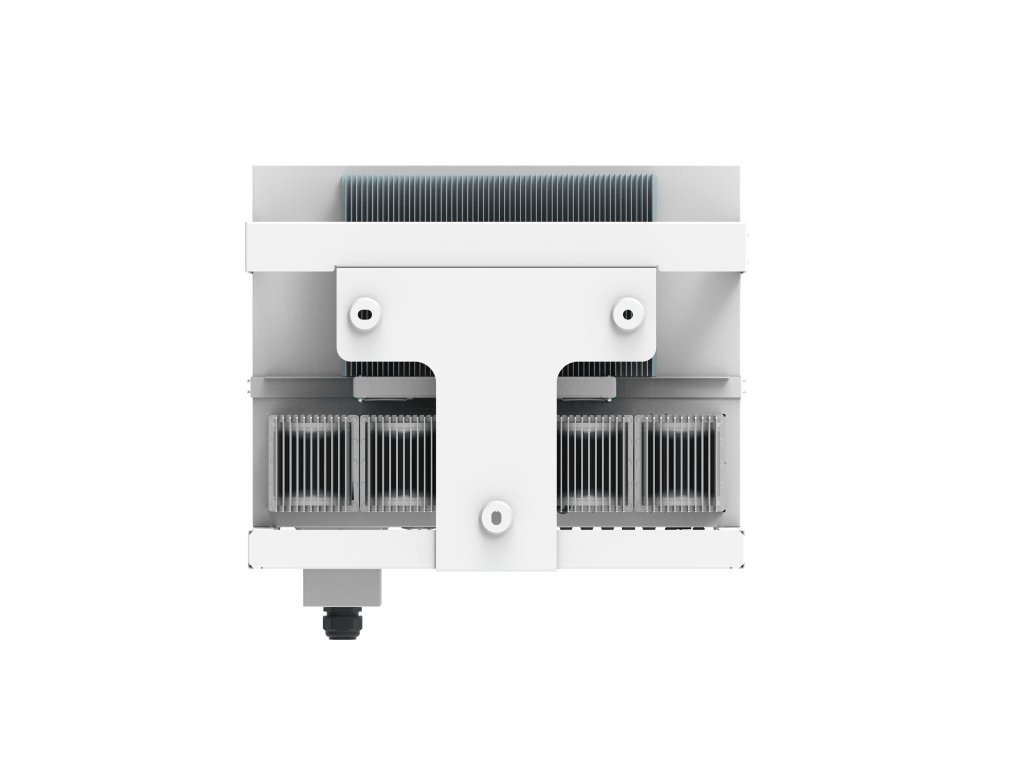

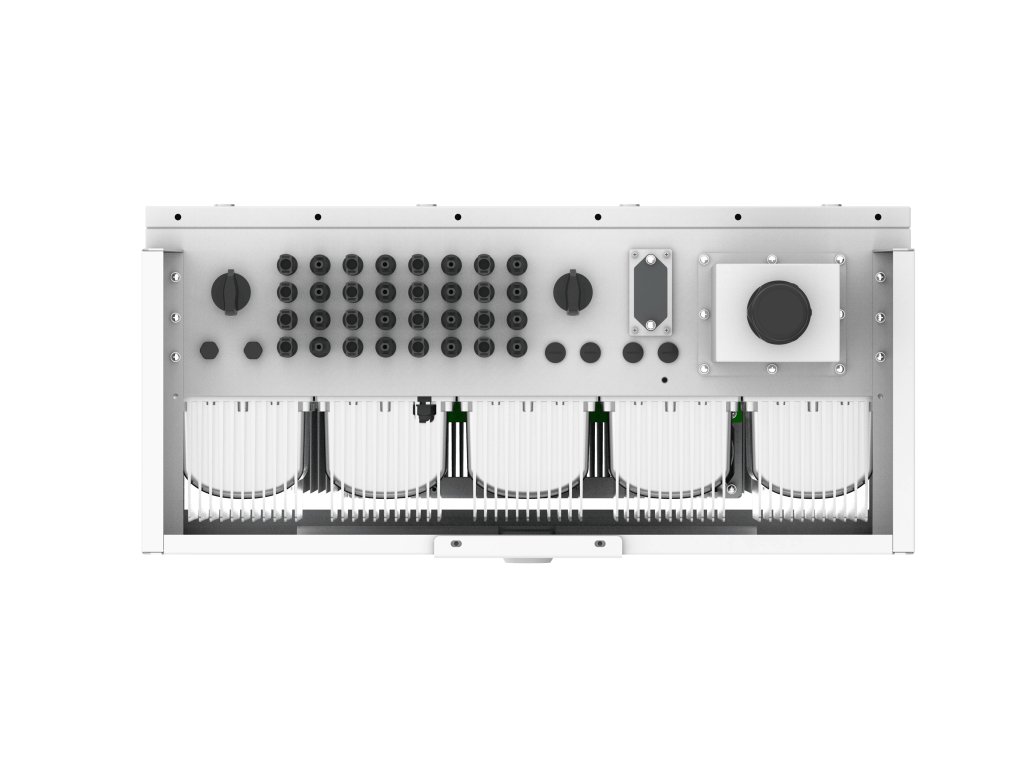

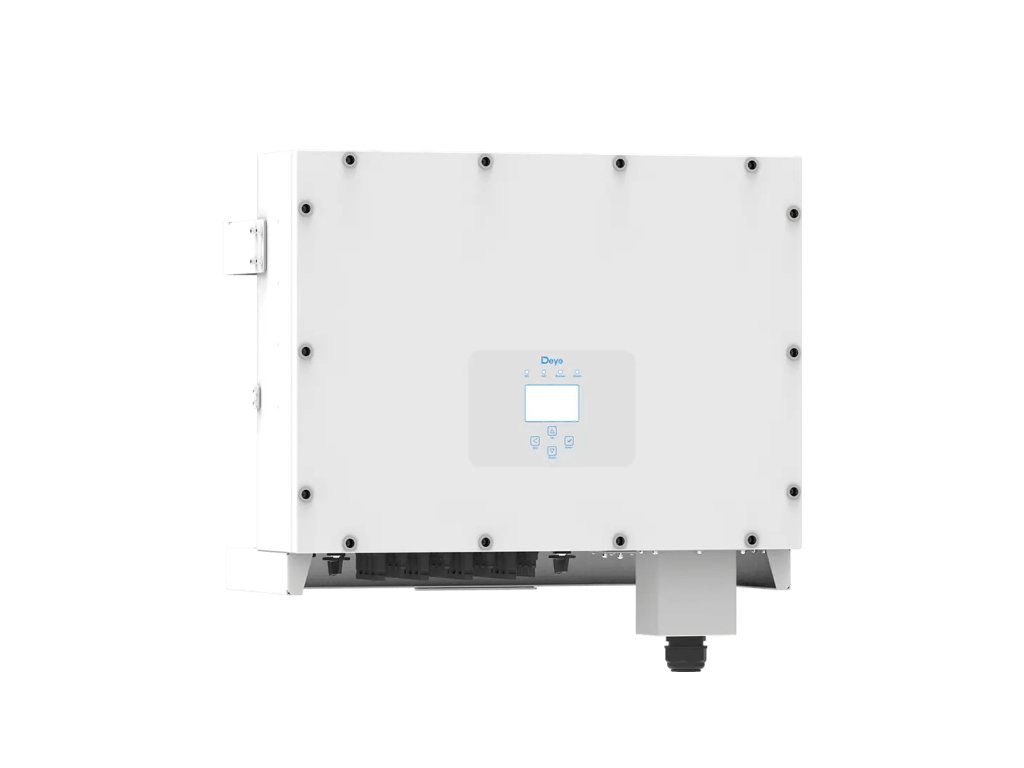

Deye SUN-75K-G

Product detailed description

Key Features

Outstanding Efficiency and Performance
The Deye SUN-G series offers excellent power conversion with peak efficiency up to 98.7% and European efficiency values ​​close to 98.1%, ensuring optimal performance and increasing the return on investment of solar installations. The inverters handle a wide MPPT voltage range from 200V to 850V, allowing for flexible system design and deployment.

Advanced Applications
These inverters support zero export applications, which are crucial for installations with export restrictions, and virtual synchronous generator (VSG) application for grid stabilization, making them ideal for modern power grids.

Comprehensive Monitoring and Control
Designed with optional intelligent string monitoring, the inverters provide detailed system performance information for effective management and maintenance. They are equipped with multiple communication interfaces including GPRS, WIFI, Bluetooth, 4G and LAN (optional) along with standard RS485/RS232 interfaces, ensuring seamless integration with various monitoring platforms.

Robust Safety and Security
The Deye SUN-G series features DC/AC Type II surge protection devices (SPD), AC output overcurrent protection, surge protection and short circuit protection. Additional safety features such as thermal protection, DC component monitoring, earth fault current monitoring, overvoltage load drop protection and residual current detection (RCD) enhance system safety.

Rugged and environmentally friendly
These inverters are designed to withstand harsh conditions, operating efficiently in temperatures from -25°C to +60°C, with derating above 45°C, and are suitable for altitudes up to 4000 meters. The IP65 protection rating ensures protection against dust and water ingress, ensuring reliable performance in a variety of climates.

Flexible and scalable design
Thanks to the compact cabinet dimensions of 700x575x297 mm (excluding connectors and brackets) and the lightweight design (approximately 60 kg), the inverters are easy to install and maintain. The models in the series - SUN-60K-G, SUN-70K-G, SUN-75K-G and SUN-80K-G - offer different rated AC active power outputs (60 kW to 80 kW), providing flexibility and scalability to meet specific power needs.

Compliance and Standards
The SUN-G series complies with international grid regulations and standards such as IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99 and VDE-AR-N 4105, ensuring compatibility and reliability across different regions and applications.
