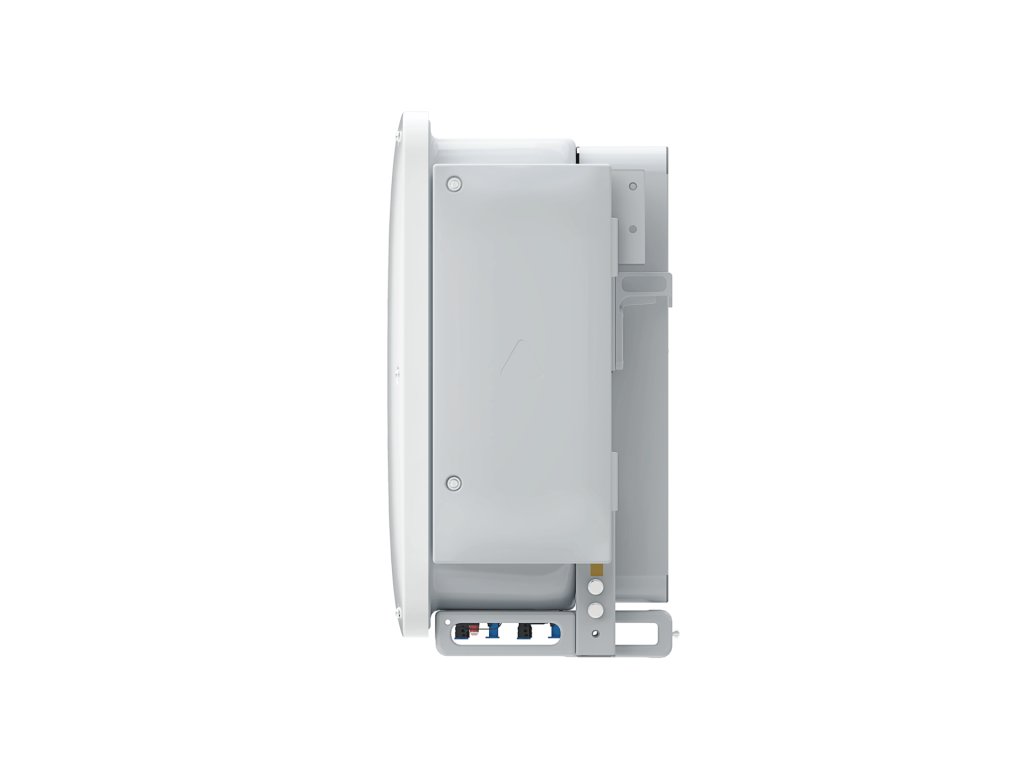

Huawei SUN2000-105KTL-H1

Code: SUN2000-105KTL-H1

Not rated Rating details

€0 €0 incl. VAT

The SUN2000 H1 is a high voltage, transformerless and intelligent PV controller. It is rated for 1500 V DC voltage marked with the letter "H".

Detailed information

In stock, ships within 24h

We keep products in stock and dispatch your order within 24 hours.

9 out of 10 customers return

As many as 9 out of 10 customers come back to us for their next project.

4.9★ rated by installers

Professional installers rate us an average of 4.9 out of 5 stars.

One partner for the whole project

A complete range from one partner – no juggling multiple suppliers.

Product detailed description

Key Features

Six independent maximum power point tracking (MPPT) circuits and 12 PV circuits
Strings: Supports flexible 2+2+2+2+2+2 string configuration.

12 paths of high-precision intelligent PV string monitoring.
Correct exceptions in a timely manner.

MBUS network.
Does not require additional communication cable, which reduces construction and maintenance costs and increases communication reliability and efficiency.

Intelligent I-V curve diagnostics: Implements I-V scanning and condition diagnostics for
PV strings. In this way, potential risks and faults can be detected early, and thus improve the operation and maintenance (O&M) quality of the power plant.

Safe

Built-in DC and AC SPD: full-area surge protection
Built-in residual current monitoring unit: Instantly disconnects from disconnects from the mains when residual current is detected to exceed a threshold value.

Reliable

Natural cooling
Fuseless design
Protection according to IP65.
Effective anti-ground drop design.
can be retracted by up to 50 mm due to the pulling force.

Additional parameters

Category:	Solar inverters
Weight:	79 kg
Brand:	Huawei
Lenght:	310 mm
Width:	1075 mm
Height:	605 mm
Power:	105000 W
Number of phases:	3
Degree of protection (IP):	IP66
Communication:	RS485, USB, MBUS
Number of MPPT:	6
String:	Up to 2 per MPPT
Inverters - Type:	Grid tie
Inverters - Huawei - Model series:	TL-H1
Maximum Output Power:	116 kW
