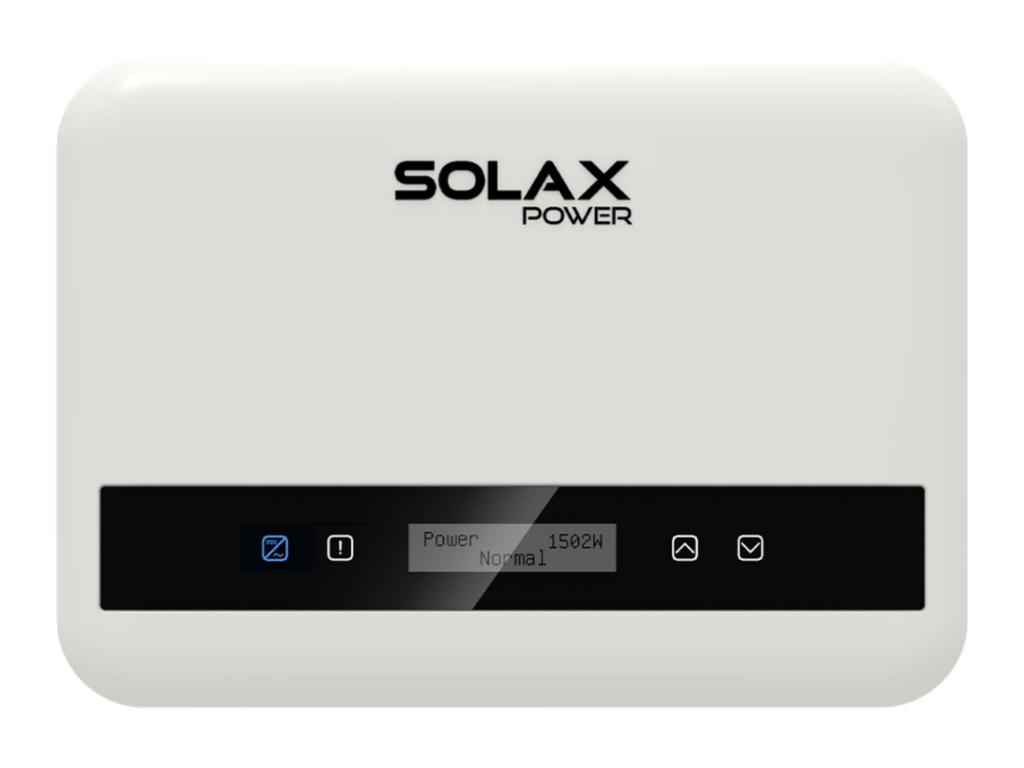

SolaX X1-MINI-1.1K-G4 1.1kW On-grid Inverter (1-phase)
Code: X1-MINI-1.1K-G4
In stock, ships within 24h
We keep products in stock and dispatch your order within 24 hours.
9 out of 10 customers return
As many as 9 out of 10 customers come back to us for their next project.
4.9★ rated by installers
Professional installers rate us an average of 4.9 out of 5 stars.
One partner for the whole project
A complete range from one partner – no juggling multiple suppliers.
Related products
Product detailed description
Overview
SolaX X1-MINI-1.1K-G4 1.1kW On-grid Inverter (1-phase) - on-grid (grid-tie) string inverter for solar PV without battery storage.
Key Features
- 1.1 kW single-phase on-grid string inverter (X1-MINI G4)
- Ultra-compact (smaller than A4), 1 MPP tracker
- IP66, max. efficiency 98.0%
- Ideal for balcony / small residential PV
Technical Specifications
| Rated AC output power | 1.1 kW |
| Rated output current | 4.8 A |
| Phase | Single-phase (1/N/PE), 230 V |
| No. of MPP trackers | 1 |
| Max. PV input voltage | 450 V |
| MPPT voltage range | 35-450 V |
| Max. input current | 16 A |
| Max. efficiency | 98.0% (Euro 97.5%) |
| Protection rating | IP66 |
| Dimensions (W x H x D) | 290 x 206 x 120 mm |
| Weight | 5.2 kg |
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 5.2 kg |
| Brand: | SolaX |
| Power: | 1100 W |
| Number of phases: | 1 |
| Degree of protection (IP): | IP66 |
| Number of MPPT: | 1 |
| Type: | Grid tie |
Product rating
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Discussion
Be the first who will post an article to this item!
SolaX Power is a leading global manufacturer of solar inverters and energy storage systems for residential, commercial and industrial applications. Its range includes hybrid and on-grid inverters (X1, X3, X3-Ultra, X3-Forth), all-in-one IES systems, Triple Power batteries and C&I storage cabinets, all built around high-efficiency MPPT technology and smart monitoring.
| Manufacturing company : | SolaX Power Network Technology (Zhejiang) Co., Ltd. |
|---|---|
| Address : | No. 288 Shizhu Road, Tonglu Economic Development Zone, Tonglu, Hangzhou, Zhejiang, China |
| E-mail : | [email protected] |
