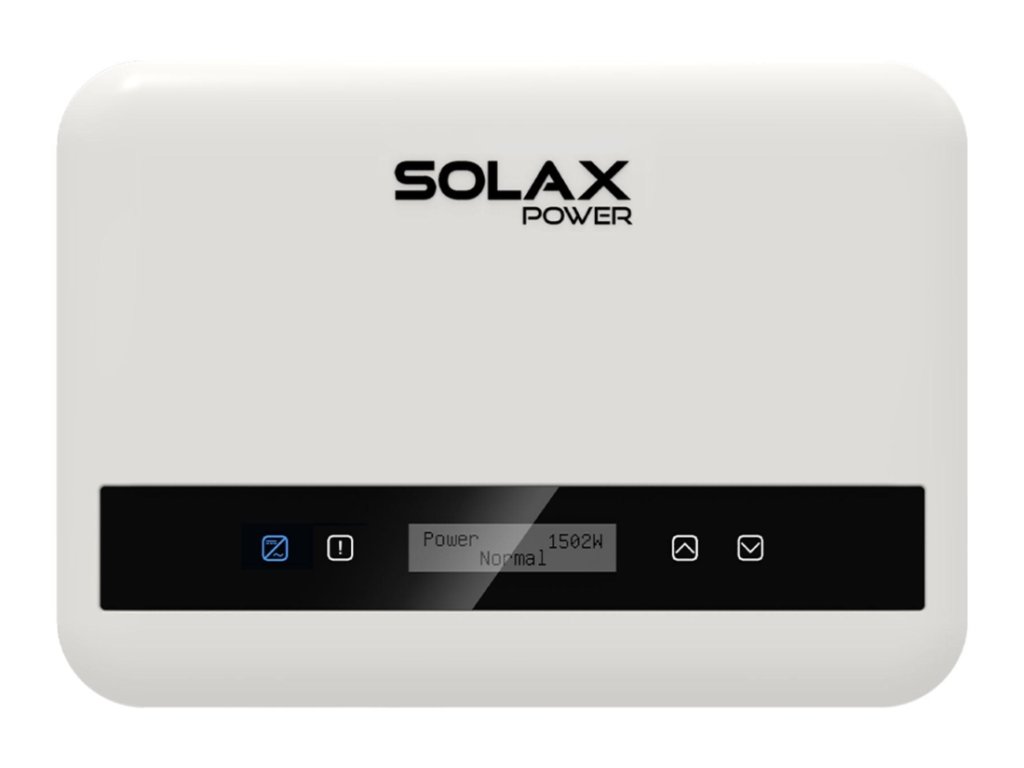

SolaX X1-MINI-2.5K-G4 2.5kW On-grid Inverter (1-phase)
Code: X1-MINI-2.5K-G4
In stock, ships within 24h
We keep products in stock and dispatch your order within 24 hours.
9 out of 10 customers return
As many as 9 out of 10 customers come back to us for their next project.
4.9★ rated by installers
Professional installers rate us an average of 4.9 out of 5 stars.
One partner for the whole project
A complete range from one partner – no juggling multiple suppliers.
Related products
Product detailed description
Overview
SolaX X1-MINI-2.5K-G4 2.5kW On-grid Inverter (1-phase) - on-grid (grid-tie) string inverter for solar PV without battery storage.
Key Features
- 2.5 kW single-phase on-grid string inverter (X1-MINI G4)
- Ultra-compact, 1 MPP tracker
- IP66, max. efficiency 98.0%
- Residential PV
Technical Specifications
| Rated AC output power | 2.5 kW |
| Max. AC apparent power | 2750 VA |
| Rated output current | 10.9 A |
| Phase | Single-phase (1/N/PE), 230 V |
| No. of MPP trackers | 1 |
| Max. PV input voltage | 450 V |
| MPPT voltage range | 35-450 V |
| Max. input current | 16 A |
| Max. efficiency | 98.0% (Euro 97.5%) |
| Protection rating | IP66 |
| Dimensions (W x H x D) | 290 x 206 x 120 mm |
| Weight | 5.2 kg |
Additional parameters
| Category: | Solar inverters |
|---|---|
| Weight: | 5.2 kg |
| Brand: | SolaX |
| Power: | 2500 W |
| Number of phases: | 1 |
| Degree of protection (IP): | IP66 |
| Number of MPPT: | 1 |
| Type: | Grid tie |
