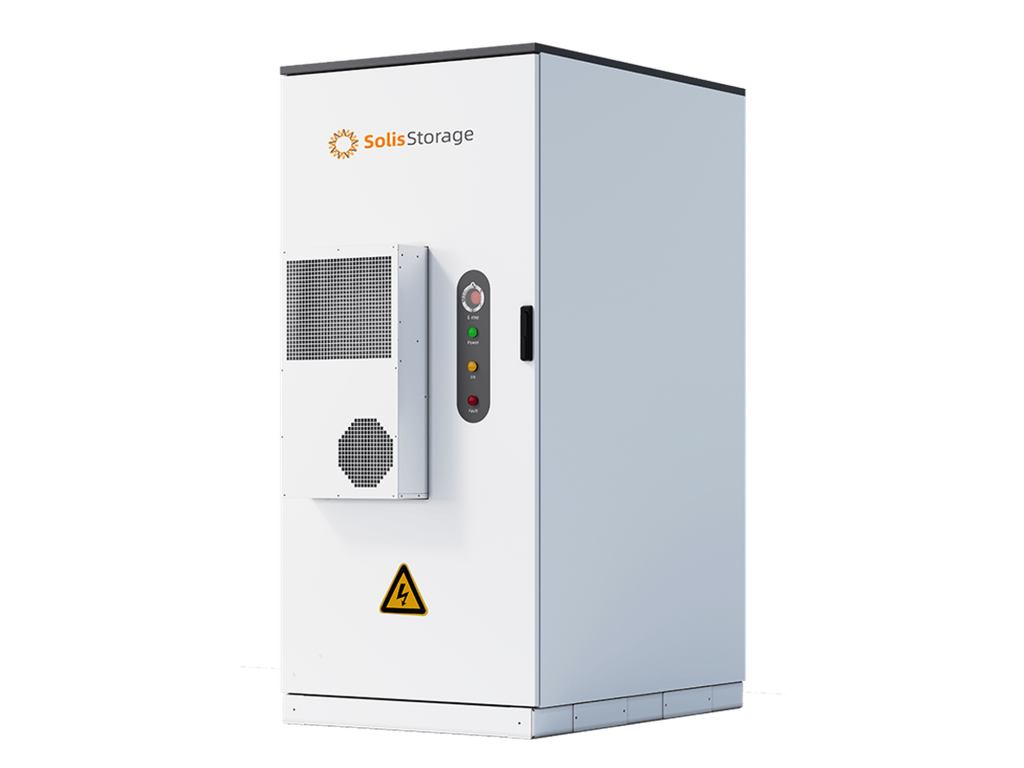

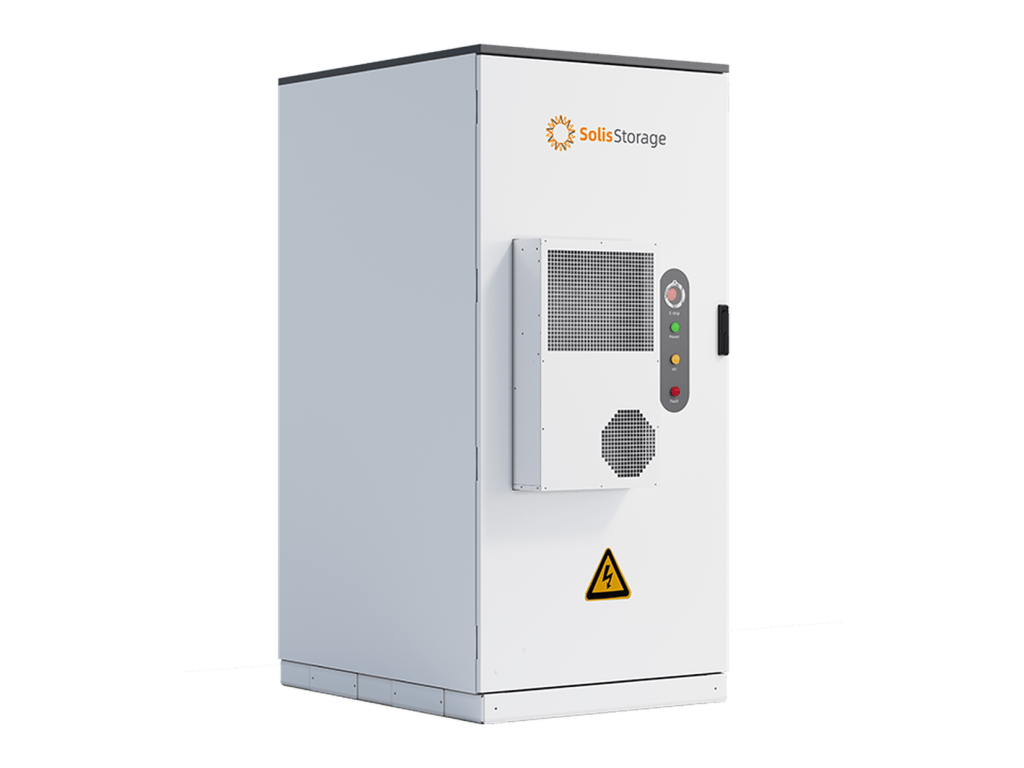

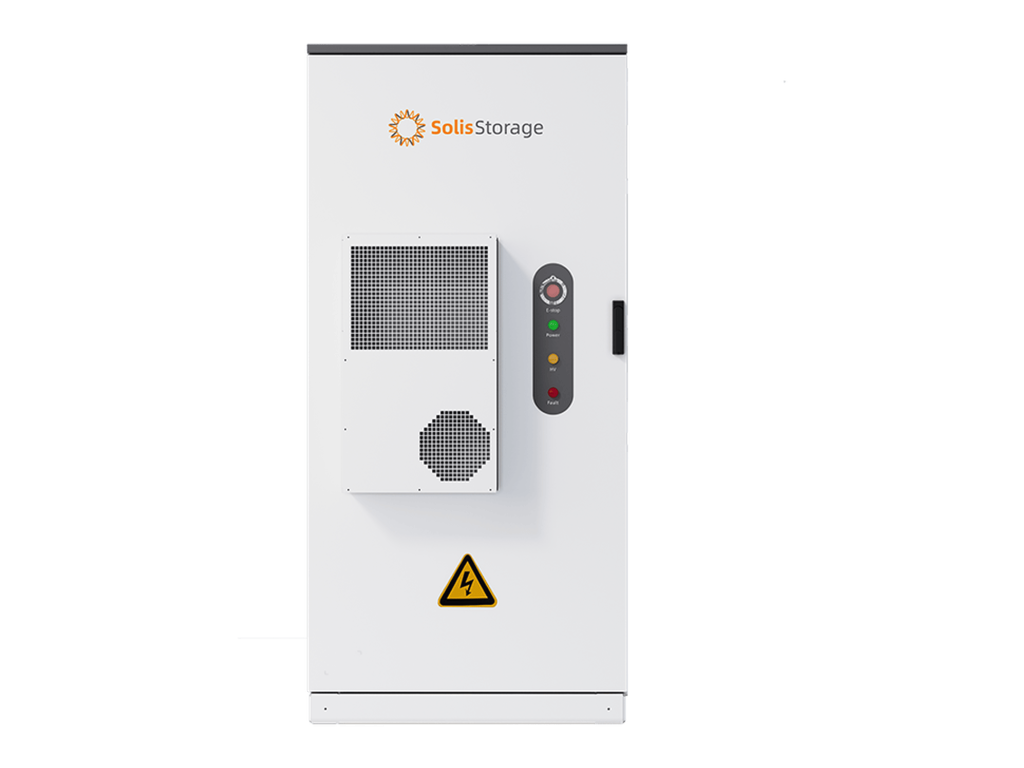

SolisStorage PrimePower 109kWh Battery Cabinet PRO
Code: PRIMEPOWER-109KWH-BATTERY-PRO
Related products
PRIMEPOWER-109KWH-50KW-NV-MASTER-PRO
PRIMEPOWER-109KWH-50KW-NV-MASTER-PRO-C5
Product detailed description
Overview
The SolisStorage PrimePower 109kWh is an all-in-one C&I energy storage cabinet built on 306 Ah LFP cells with a 10000-cycle design life. This battery-only expansion cabinet extends a PrimePower Master system. This PRO version includes all Standard safety items plus a lithium-ion (combustible gas) detector, explosion relief board and explosion-proof exhaust, with combined sound and light alarm. Battery expansion cabinet - connects to a PrimePower Master system.
Key Features
- 109.7 kWh rated / 98.7 kWh usable on 306 Ah LFP cells with 10000-cycle life
- Battery-only cabinet for capacity expansion of a Master system
- PRO version: all Standard safety items plus a lithium-ion (combustible gas) detector, explosion relief board and explosion-proof exhaust, with combined sound and light alarm
- Battery expansion cabinet - connects to a PrimePower Master system
- Industrial air-conditioned cabinet with natural-cooled packs
- Aerosol fire suppression, explosion relief valve and fire water inlet as standard
- SolisStorage Cloud remote monitoring and OTA updates
Technical Specifications
| Rated / usable capacity | 109.7 kWh / 98.7 kWh |
| Cell type | LFP 3.2 V / 306 Ah |
| Expansion | Battery expansion cabinet - connects to a PrimePower Master system |
| Battery configuration | 1P112S, 358.4 V rated (313.6-403.2 V), 7 x 15.67 kWh packs |
| Cell cycle life | 10000 cycles (25 ± 2 °C, 0.5P, 70% SOH) |
| Cooling | Industrial-grade air conditioning (cabinet), natural-cooled packs |
| Operating temperature | -25 to +55 °C |
| Noise | 70 dB(A) @ 1 m |
| Certifications | IEC 62619, IEC 62477, IEC 63056, IEC 62040, IEC 61000-6-2/4, UN38.3 |
| Warranty | 10 years battery cabinet |
| Fire safety | All standard safety items plus a lithium-ion (combustible gas) detector, explosion relief board and explosion-proof exhaust, with combined sound and light alarm |
| Anti-corrosion class | C4 |
| Ingress protection | IP55 |
| Dimensions (W x H x D) | 950 x 2070 x 1357 mm |
| Weight | 1320 kg |
Compatible Inverters
- Connects to a SolisStorage PrimePower Master system with integrated Solis S6-EH3P50K-H(21A) hybrid inverter (up to 6 battery cabinets per system)
Applications
- Commercial and industrial (C&I) energy storage
- Peak shaving and load shifting
- PV self-consumption optimisation
- Backup power for critical loads
- EV-charging support and grid services
Additional parameters
| Category: | Commercial Energy Storage |
|---|---|
| Weight: | 1320 kg |
| Brand: | Solis |
| Lenght: | 1357 mm |
| Width: | 950 mm |
| Height: | 2070 mm |
| Degree of protection (IP): | IP55 |
-
SolisStorage PrimePower 109kWh Battery Cabinet Datasheet (PDF)
-
SolisStorage PrimePower 109kWh-50kW User Manual (PDF)
-
SolisStorage PrimePower 109kWh-50kW Quick Installation Manual (PDF)
