Victron Blue Smart IP22 Charger 12/15(1) 230V

Product detailed description

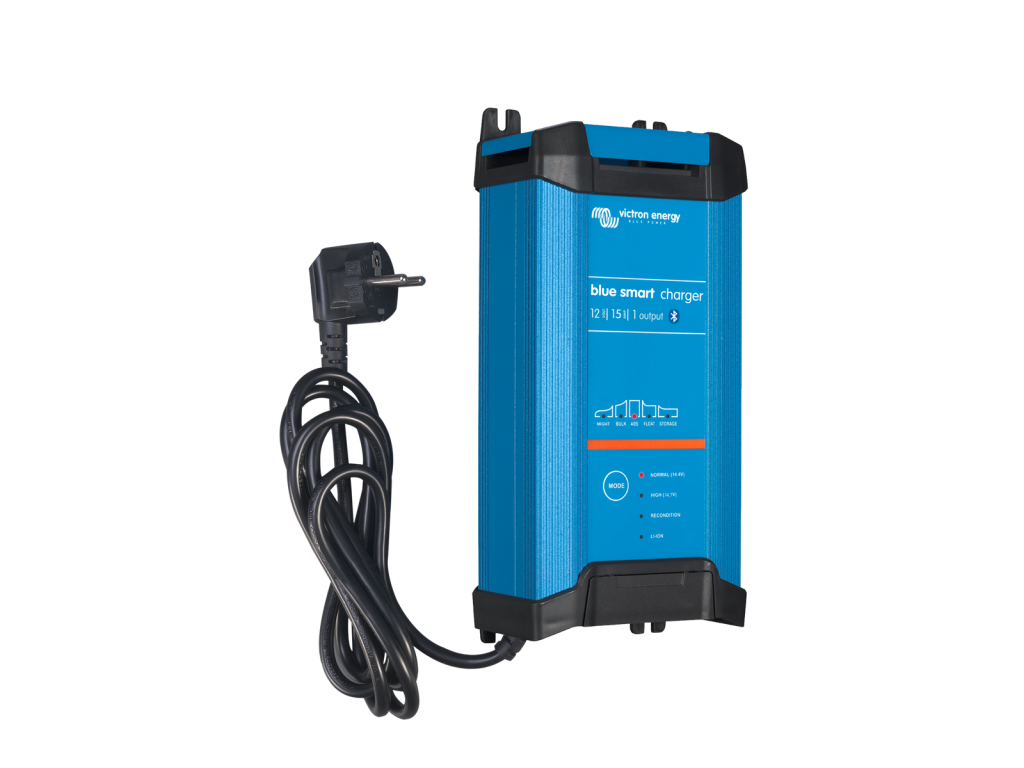

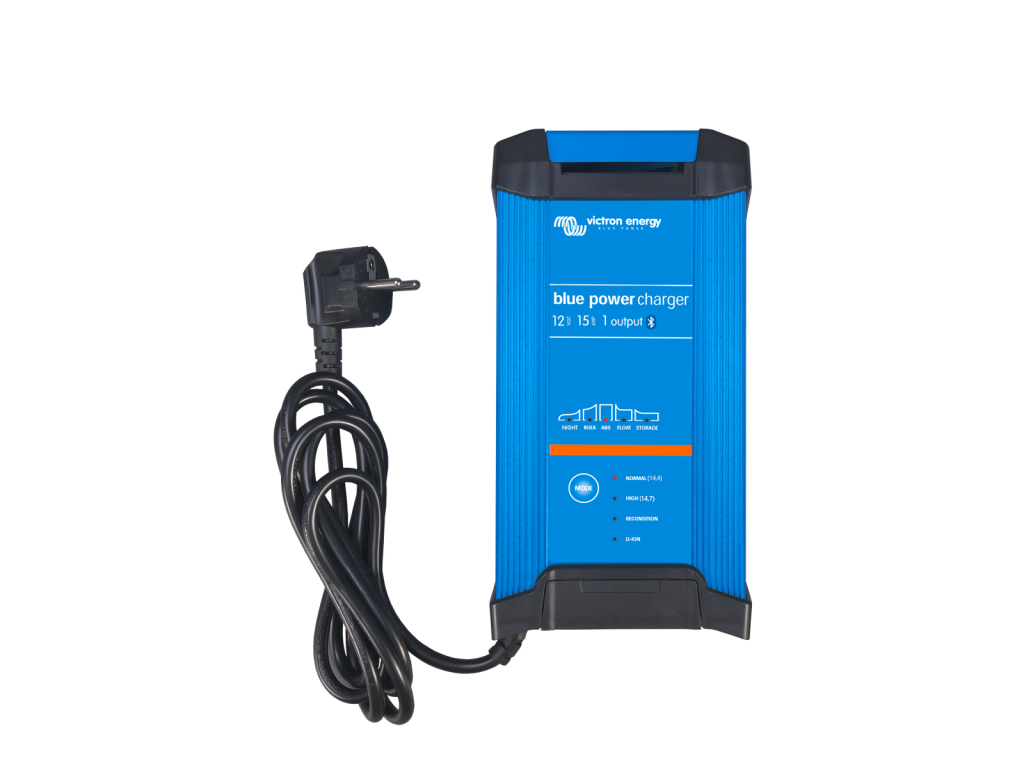

Victron Blue Smart IP22 Charger 12/15(1)

The Blue Smart IP22 Charger is Victron's professional battery charger with built-in Bluetooth for remote monitoring and control via the VictronConnect app. With up to 93% efficiency, it generates up to four times less heat compared to the industry standard.

Key Features

The charger features a microprocessor-controlled adaptive 6-stage charge algorithm (test, bulk, absorption, recondition, float, storage) that automatically optimizes the charging process relative to battery usage. Charge voltage is automatically compensated based on ambient temperature.

The storage mode activates whenever the battery has not been subjected to discharge for 24 hours, reducing float voltage to minimize gassing and corrosion. Once a week the voltage is raised back to absorption level to equalize the battery.

Smart Connectivity

Built-in Bluetooth Smart allows wireless monitoring of voltage and current, changing settings, and firmware updates via the VictronConnect app. VE.Smart Networking enables communication between compatible Victron products (Smart Battery Sense, BMV-712, SmartShunt) for temperature and voltage compensated charging.

Versatile Application

Suitable for workshops, classic cars, motorbikes, boats, and camper vans. Supports lead-acid and Li-ion batteries. Features fully discharged battery recovery, NIGHT/LOW mode for silent operation, and protection against overheating up to 50 degrees C.

Specifications

• Input: 180-265 VAC, 45-65 Hz
• Output: 12V, 15A (1 output)
• Efficiency: 93%
• Charge algorithm: 6-stage adaptive
• Protection: IP22
• Material: Aluminium (Blue RAL 5012)
• Operating temperature: -40 to +60 degrees C
• Dimensions: 235 x 108 x 65 mm (h x w x d)
• Weight: 1.3 kg
• Connection: CEE 7/7 plug, screw terminals 16 mm2 / AWG6
