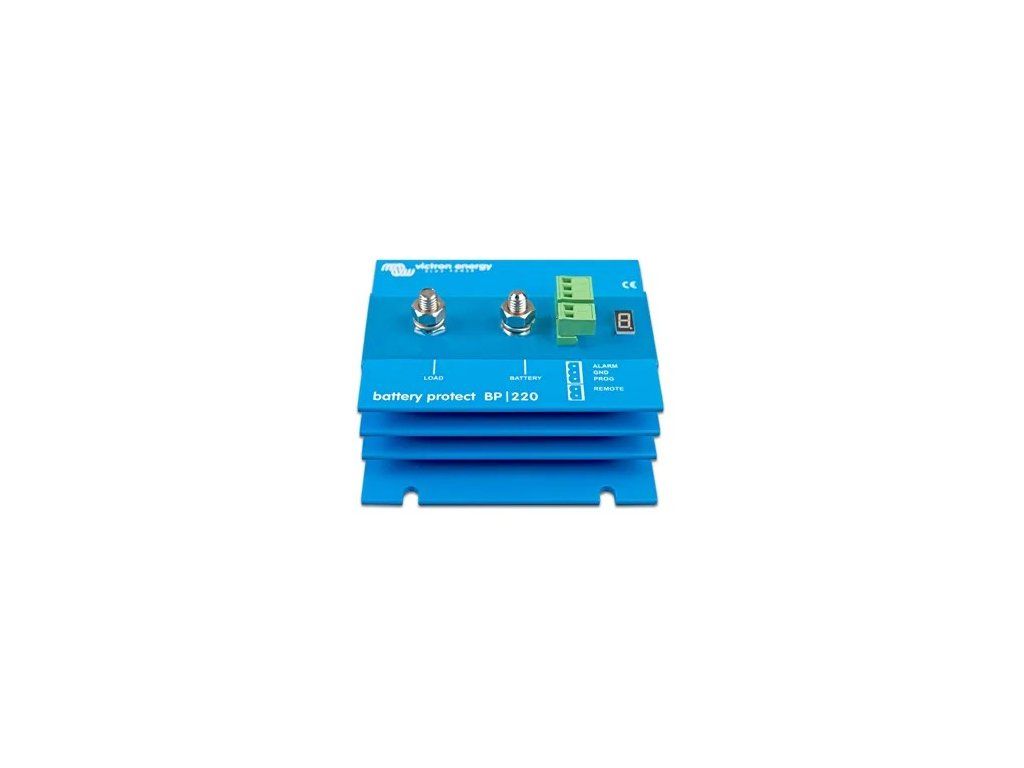

    Victron Energy Battery Protect 12/24V-220A

    Code: BPR000220400
    Not rated
    bpr000220400
    €0 €0 incl. VAT
    On request
    The BatteryProtect disconnects the battery from non-essential loads before it is completely discharged, preventing damage from deep discharge and ensuring sufficient power remains for critical functions like engine starting. It can also be controlled remotely or as part of a Victron Lithium battery

    Detailed information

    Fair price
    Fair price
    We offer competitive prices with an emphasis on quality and transparency
    Fast delivery
    Fast delivery
    Products in stock, ships now. Backordered items ship in 5 days.
    Loyalty bonus
    Loyalty bonus
    Regular customers get discounts and bonuses for their loyalty.
    Expert turnkey installation
    Expert turnkey installation
    We provide end-to-end services with a quality guarantee.

    Product detailed description

    Overview

    The BatteryProtect disconnects the battery from non-essential loads before it is completely discharged, preventing damage from deep discharge and ensuring sufficient power remains for critical functions like engine starting. It can also be controlled remotely or as part of a Victron Lithium battery system to enforce safe disconnect.

    Applications

    Used in marine, automotive, and off-grid solar installations to protect both the batteries and downstream electronics. The Smart variants add Bluetooth for in-app configuration of disconnect/reconnect thresholds and timing.

    Key features

    • Programmable disconnect and reconnect voltages
    • Auto-detect 12V or 24V (and 48V variants for higher-voltage systems)
    • Soft-start to avoid inrush at reconnect
    • Smart variants: Bluetooth, VE.Smart networking, VictronConnect monitoring
    • Compact, fan-less design with no voltage drop in operation
    • Compatible with VE.Bus BMS for lithium battery protection

    How to use it

    Install in line between the battery positive terminal and non-essential loads (lighting, accessories, inverter). Power for cranking the engine should bypass the BatteryProtect. Configure thresholds via VictronConnect (Smart variant) or manually with the programming pin.

    Specifications

    • Dimensions (h × w × d): 6.2×12.3×12.0 cm
    • Weight: 0.800 kg

    Additional parameters

    Category: Accessories
    Weight: 0.8 kg
    Brand: Victron Energy
    Lenght: 120 mm
    Width: 123 mm
    Height: 62 mm
    Nominal voltage: 24 V
