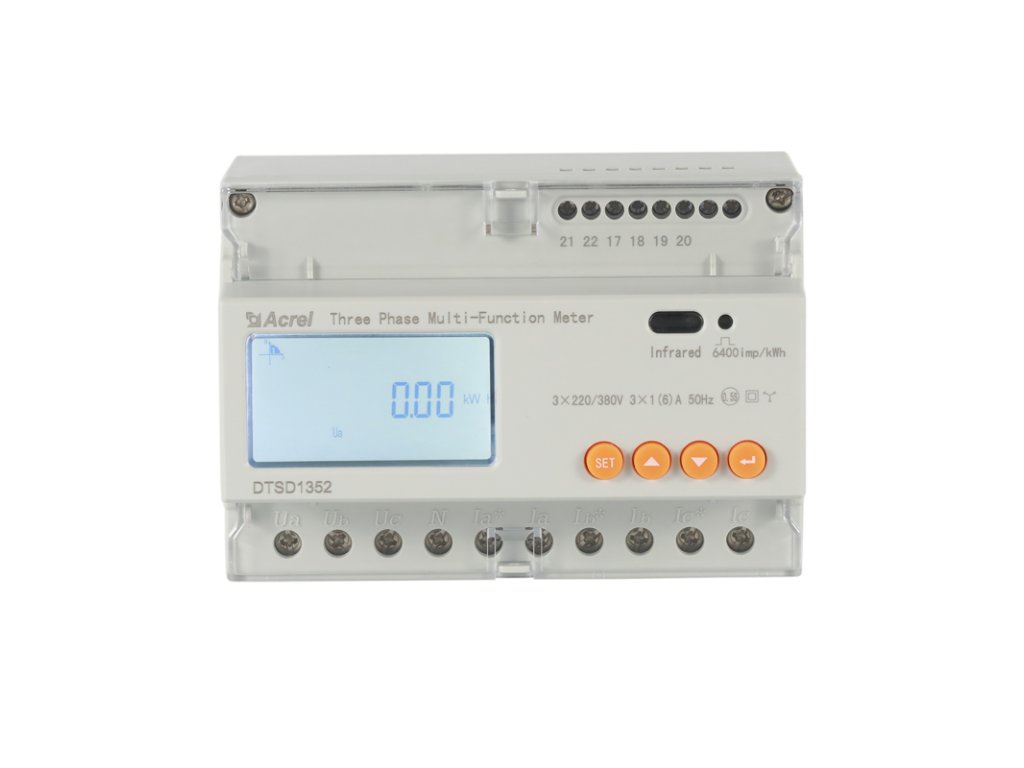

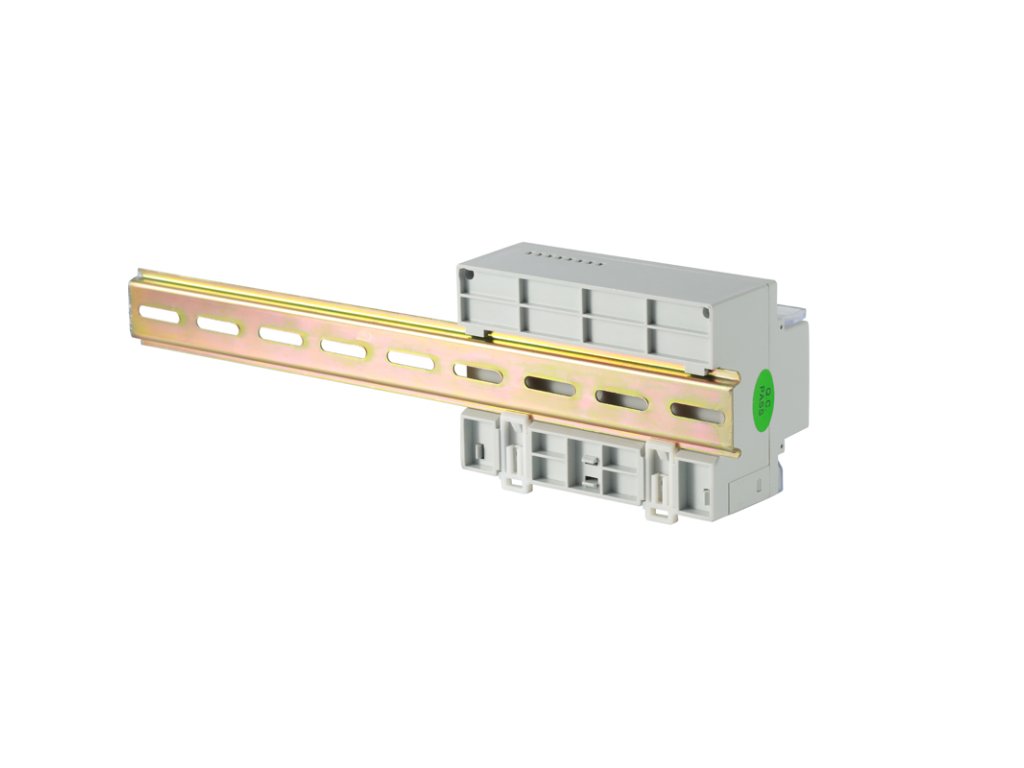

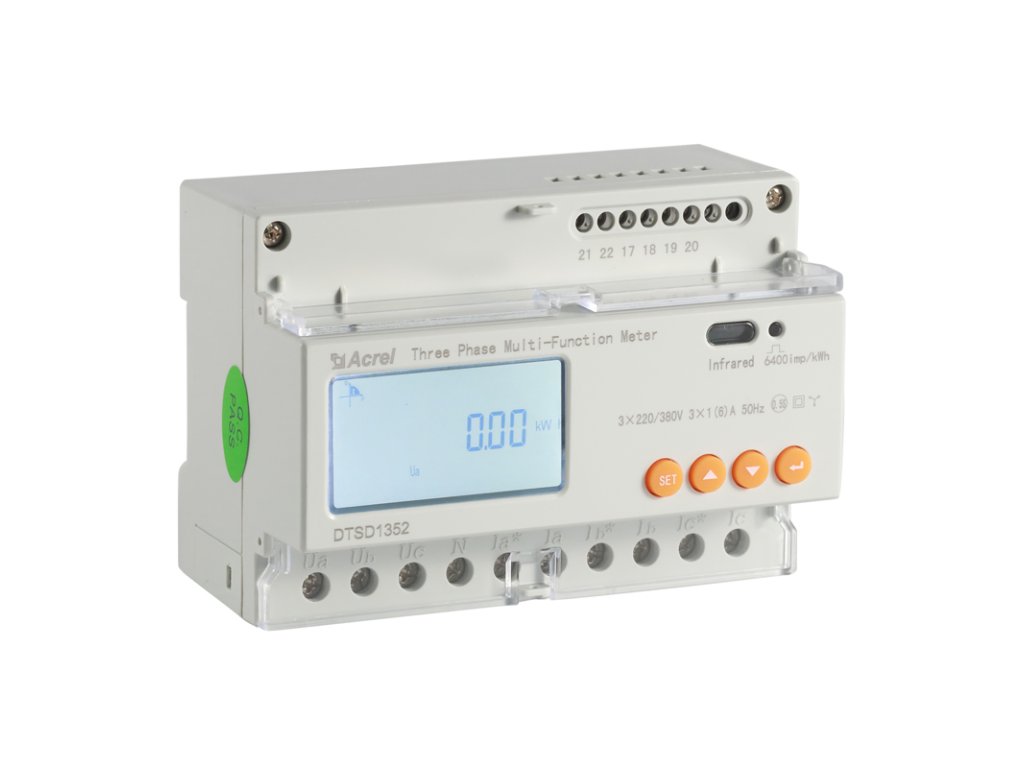

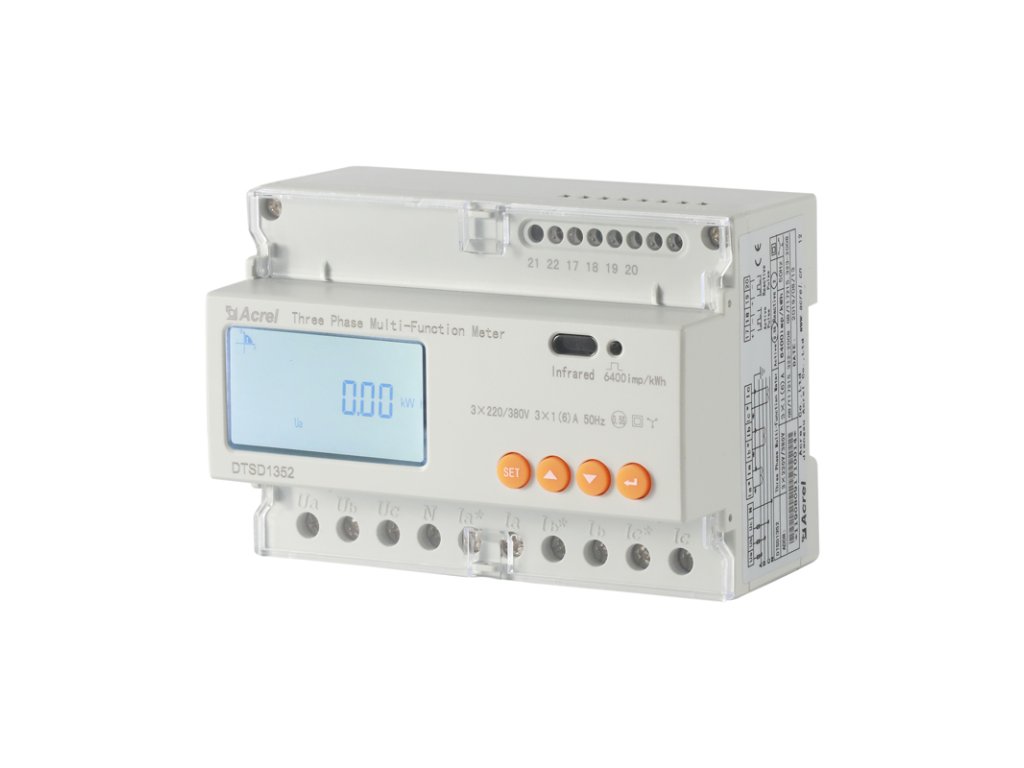

Solis DTSD1352-CT Three Phase Energy Meter (External CT 3x150A:5A)
Code: DTSD1352-CT-SOLIS
Product detailed description
Meter-3P-Acrel (External CT) 3x150A:5A CTs
Used on 3-phase grid tied inverters to do internal export power limit function / consumption monitoring function.
Compatible with:
- Solis-3P(3-20)K-4G
- Solis-3P(5-10)K-4G-LV
- Solis-(25-40)K-5G
- Solis-(15-23)K-LV-5G
- S5-GR3P(3-20)K
- S5-GR3P(5-10)K-LV
- S5-GC(25-40)K
- S5-GC(15-23)K-LV
- S6-GR3P(5-10)K03-NV-ND-AU
- S6-GC3P(25-36)K03-NV-ND
- S6-GC3P(15-20)K03-LV-ND
- S6-GC3P(40-60)K-NV-ND
- S6-GC(23-36)K-LV-ND
- S6-GC(80-125)K(300A)
- S6-GC(50-75)K-LV(300A)
- S6-GC3P150K07-ND(300A)
- S5-GC(50-60)K
- S5-GC(25-36)K-LV
- S5-GC(80-110)K (300A)
- S6-EH1P(3-8)K-PLUS (When parallel)
Measurement:
- AC Voltage
- AC Current
- AC Power Active
- AC Power Reactive
- AC Power Apparent
- Active Energy (KWh)
- Reactive Energy (KVarh)
Additional parameters
| Category: | Accessories |
|---|---|
| Weight: | 0.1 kg |
| Brand: | Solis |
| Lenght: | 127 mm |
| Width: | 88 mm |
| Height: | 70 mm |
| Number of phases: | 3 |
| Communication: | RS485 |
| Warranty: | 2 |
| Nominal voltage: | 230 V |
