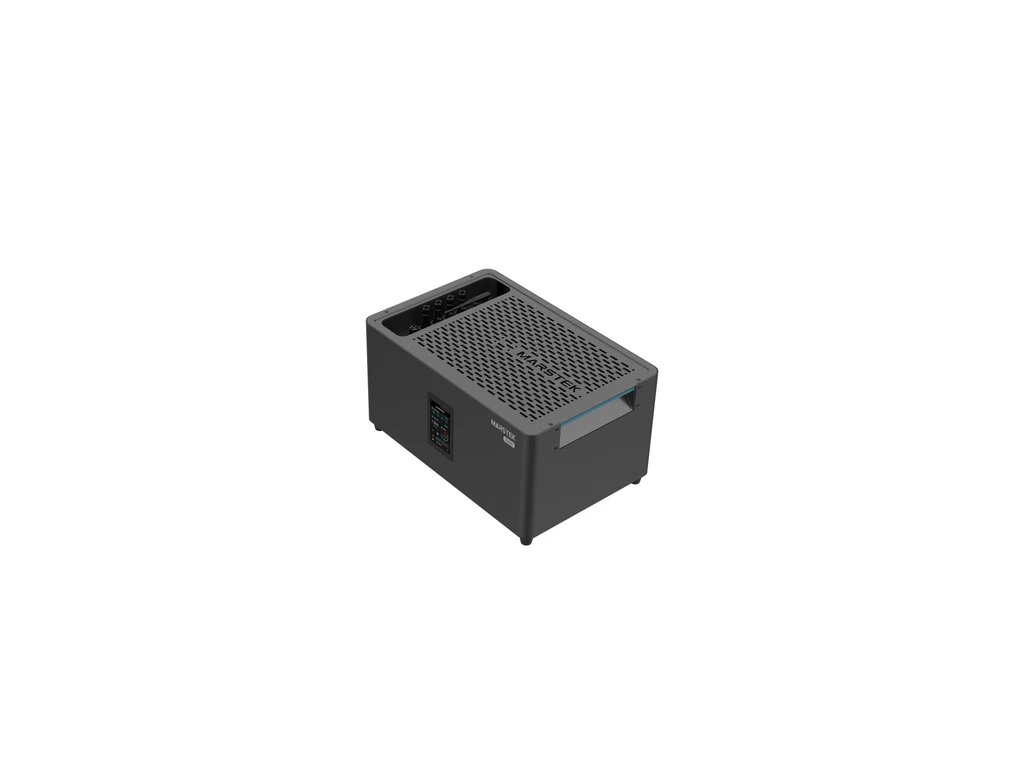

Marstek Jupiter-C+ main device
Code: MARSTEK-JUPITER-C-MAIN
Product detailed description
Key Features:
- 800W on-grid, plug & play
Provides up to 800W power for everyday appliances, reducing grid reliance and lowering energy costs.
- All-in-One Design
By combining the battery, BMS, and microinverter into one compact unit, this advanced design streamlines the system layout and minimizes energy loss, enabling efficient and straightforward connection to the grid.
- 2.4kW PV input, 4 MPPT
Supports up to 2400W solar input with a 4 independent MPPT design, ensuring rapid charging. MPPT efficiency of up to 99.8%, it delivers outstanding energy conversion performance.
- Anti feed-in, with MARSTEKCT002/003/Shelly
Continuously monitors real-time power data from compatible smart meters and intelligently adjusts its output to match household consumption. This dynamic control ensures zero feed-in to the grid, maximizing self-consumption and improving overall energy efficiency. Supported smart meters include Marstek CT002/CT003, Shelly Smart Meter, HomeWizard P1 Meter, and others.

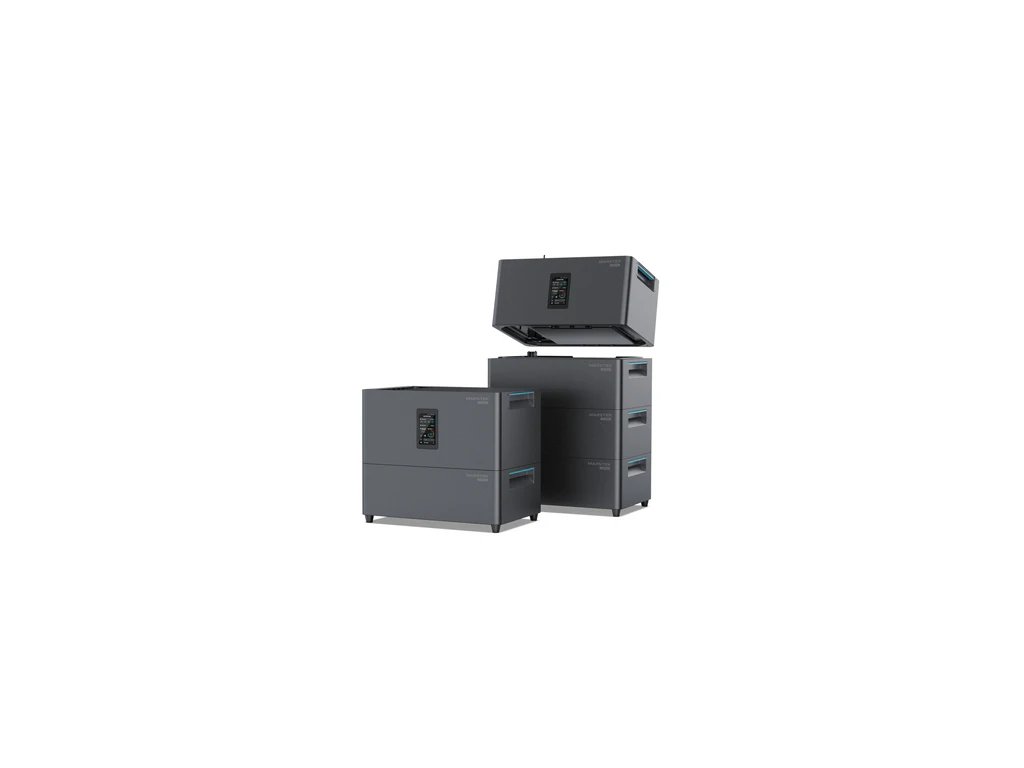

- 2.56 kWh capacity, Stacked design, expandable up to 10.24 kWh
It starts with a base capacity of 2.56kWh and can be expanded with up to three extension batteries, reaching 10.24kWh. Effortlessly meet household energy demands
- IP65 waterproof
IP65 dust and water resistance and operates stably from -20°C to +60°C, providing reliable, year-round protection for photovoltaic systems in all weather conditions.
- HD touchscreen, user-friendly & energy-efficient
Additional parameters
| Category: | Batteries for photovoltaics |
|---|---|
| Weight: | 34 kg |
| Brand: | Marstek |
| Degree of protection (IP): | IP65 |
| Number of MPPT: | 4 |
| Communication: | RS485, Wi-Fi, Bluetooth |
| Nominal voltage: | 230 V |
| Lenght: | 320 mm |
| Width: | 480 mm |
| Height: | 230 mm |
| Usable energy: | 2,56 kWh |
| Battery type: | Low voltage |
| Discharge power: | 800 W |
| Ah Capacity: | 50 |
| Max. PV short circuit current: | 20 A |
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Be the first who will post an article to this item!
Founded in 2020, MARSTEK is dedicated to making clean energy accessible and affordable for every household. Combining innovation with a bold vision, MARSTEK developed its own lithium iron phosphate laminated cells and introduced the world’s first household micro-solar battery storage system—pioneering advancements in residential energy solutions.
The name MARSTEK blends "Mars" and "Technology," symbolizing the company’s commitment to exploration, innovation, and pushing the boundaries of what’s possible.
