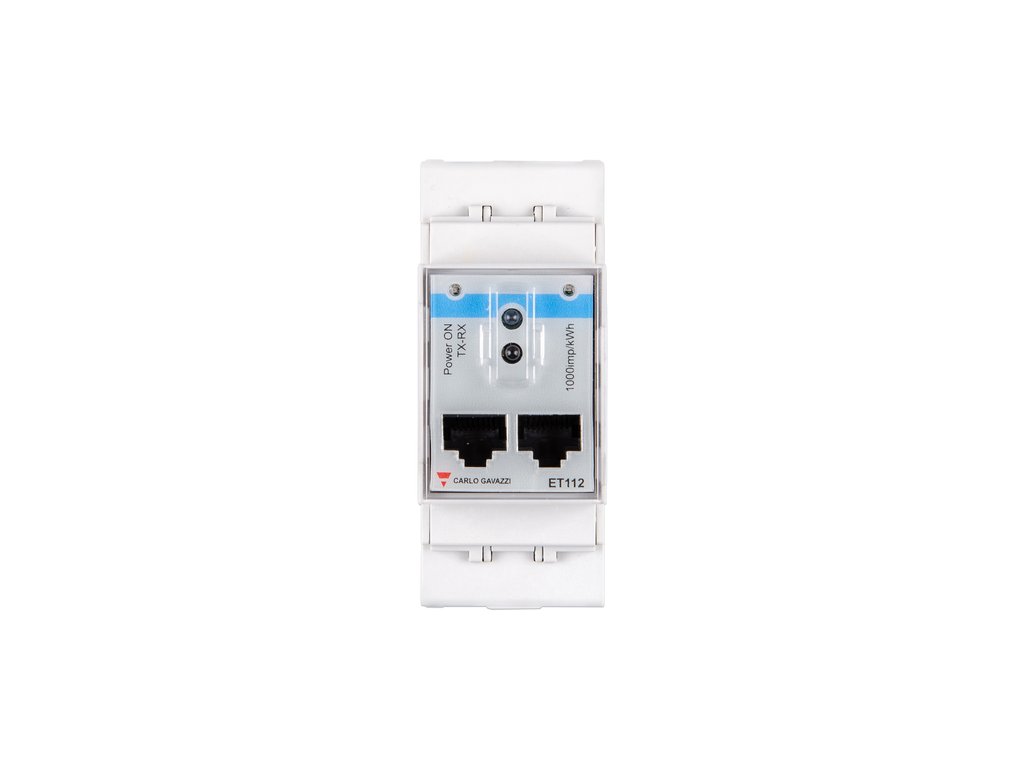

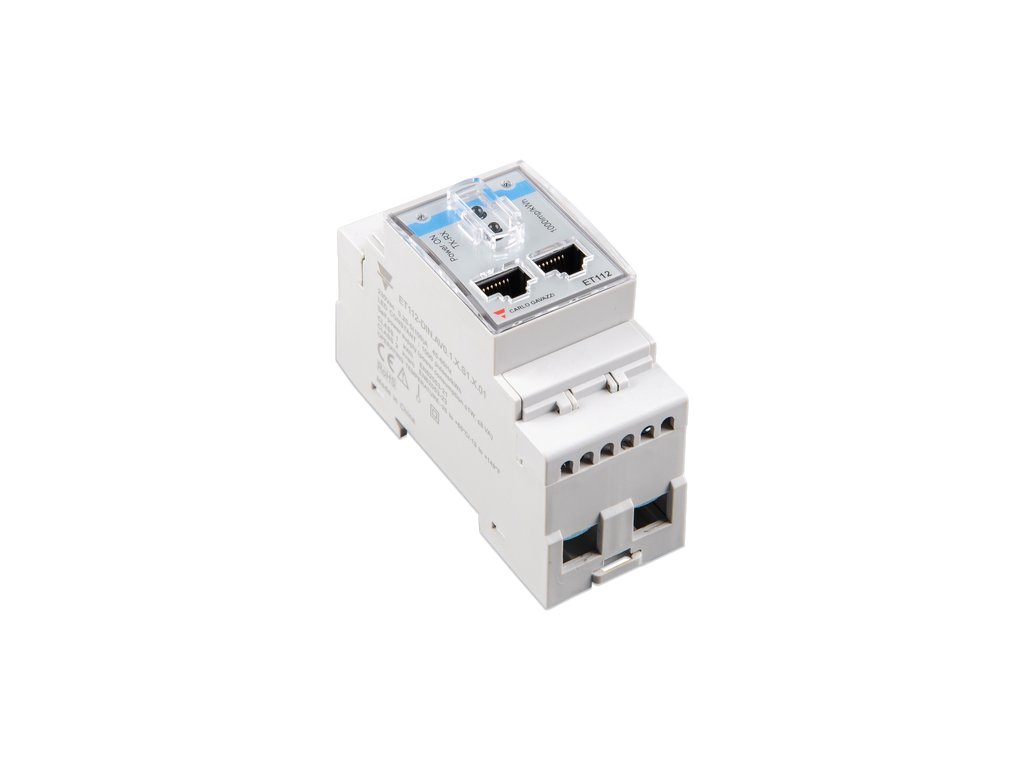

Victron Energy Meter ET112
Code: VICTRON-ENERGY-METER-ET112Product detailed description
Key Features:
The ET112 can be configured for four different roles in a GX device such as the Cerbo GX:
- As a grid meter and used as a control input for the ESS system.
- To measure the output of a photovoltaic inverter.
- To measure the output of an AC generator.
- As an AC meter to measure a dedicated AC load circuit.
It offers two connection options to the GX device:
- Wired connection, either using the RS485 to USB interface with a cable length of 1.8m or 5m.
- Wireless connection via our Zigbee to USB and Zigbee to RS485 converter.
Additional parameters
| Category: | Photovoltaics |
|---|---|
| Weight: | 0.5 kg |
| Brand: | Victron Energy |
| Number of phases: | 1 |
| Communication: | RS485 |
| Maximum feed through current: | 100 A |
-
Victron Energy Meter ET112 Manual (EN) (13.1 MB)
-
Victron Energy Meter ET112 Selection Guide (EN) (171.6 kB)
