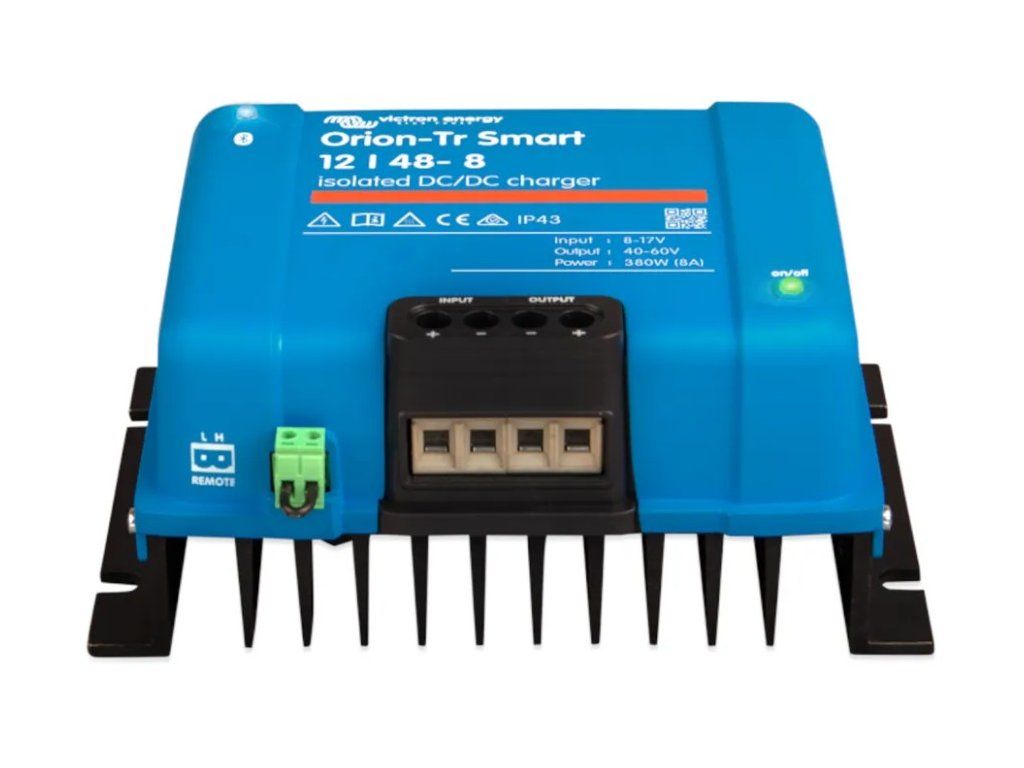

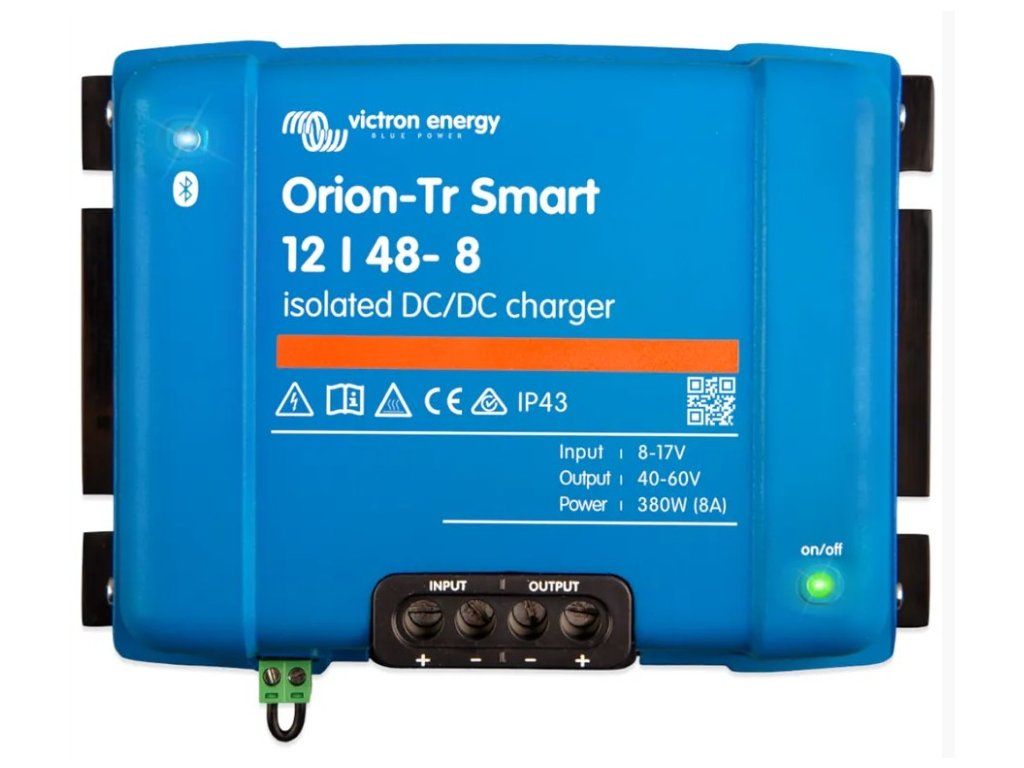

Victron Isolated DC-DC Charger Orion-Tr Smart 12/48-8

Product detailed description

Key Features

• Bluetooth Smart
  Allows monitoring, configuration, and software updates from a smartphone, tablet, or other device using the VictronConnect app.
• Fully programmable
  The charger can be configured with a battery charging algorithm or used as a constant output power supply.
• Smart alternator compatibility
  Includes an engine running detection mechanism, making it suitable for vehicles with smart alternators.
• Adaptive three-stage charging
  Uses a bulk, absorption, and float charging algorithm to efficiently charge both lead-acid and lithium batteries.
• Lead-acid battery optimization
  For shallow discharges, the absorption time is reduced to help prevent overcharging. After deeper discharges, the absorption time increases automatically to ensure a full charge.
• Lithium battery support
  Suitable for lithium batteries, with a default constant absorption time of 2 hours.
• Remote on/off
  Can be controlled using a remote on/off switch or relay contact, allowing easy integration into vehicle or boat electrical systems.
• Parallel connection
  An unlimited number of units can be connected in parallel to increase the total output current.
• Short-circuit protection
  All models are protected against short circuits for safer operation.
• High temperature protection
  Output current is automatically reduced when the ambient temperature is high.
• High temperature operation
  Suitable for ambient temperatures up to 55°C, with full rated output power available up to 40°C.
• IP43 protection
  Provides IP43 protection when installed with the screw terminals facing downwards.
• Screw terminals
  Installation does not require special tools.
• Input fuse
  Equipped with a built-in, non-replaceable input fuse.
