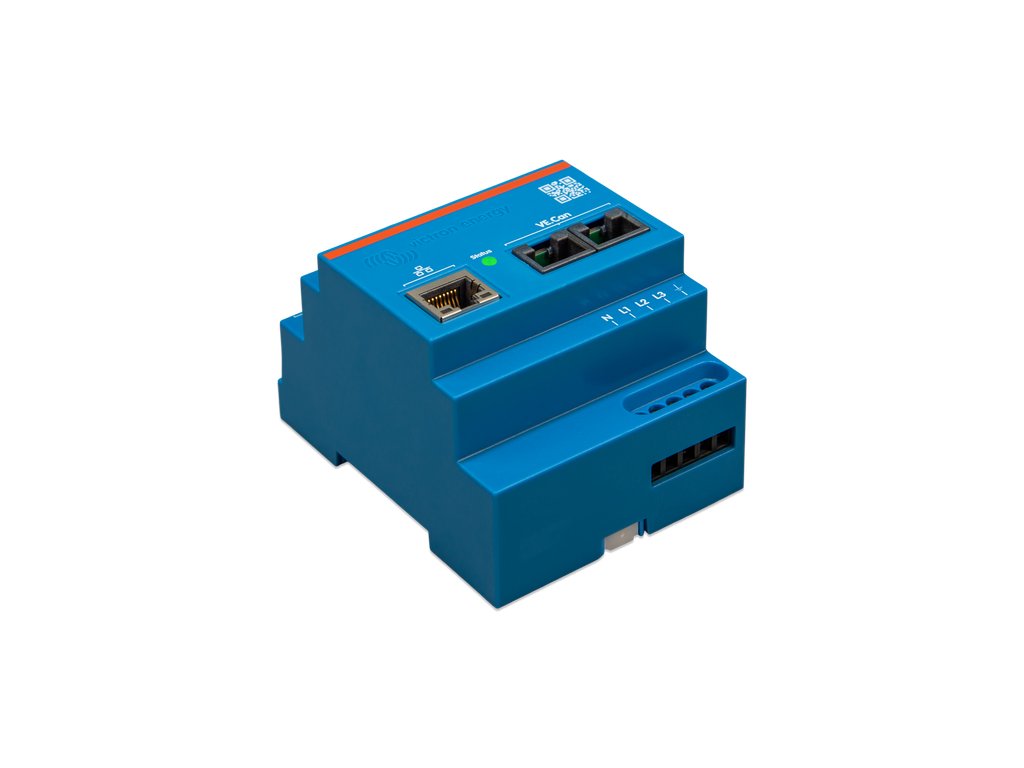

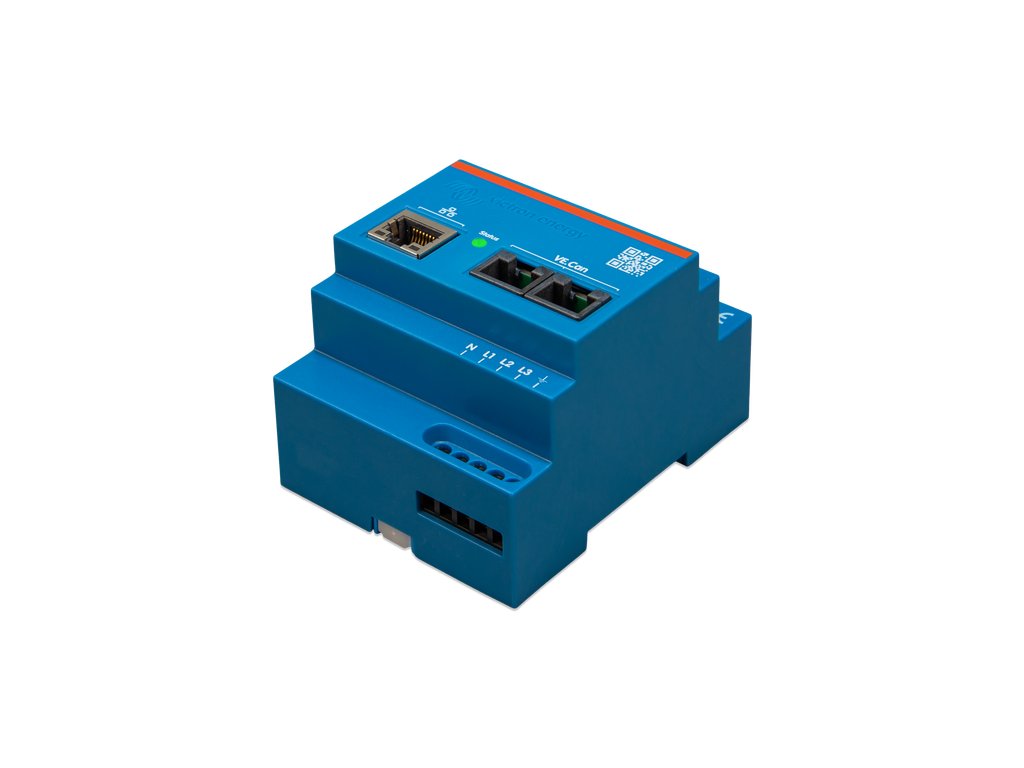

Victron Energy Meter VM-3P75CT

Product detailed description

Three-phase energy meter with Ethernet and VE.Can communication ports
The Victron VM-3P75CT energy meter is a standard device for measuring the power and energy of single-phase and three-phase applications, for example in a switchboard or for measuring the power of a photovoltaic inverter, an AC generator or the power of an inverter and an inverter/charger.

High refresh rate
Calculating the effective power value for each phase, the energy meter transmits it at high speed via VE.Can or Ethernet, resulting in more accurate measurements of energy consumption, grid import and grid feed, for example in an ESS system.

The VM-3P75CT enables easy setup
The energy meter is designed for easy integration and works out of the box (Plug & Play) as a grid meter for most systems. Configuration (via VictronConnect) is only required to change the role (grid meter, photovoltaic inverter, AC meter or AC load meter) and manually configure the IP instead of the default DHCP.

Remote monitoring from anywhere
Its data is displayed in the VictronConnect app, on a GX device such as Cerbo GX or Ekrano GX and on our VRM portal.

Hassle-free installation with snap-on current transformers
The VM-3P75CT uses clamp-on current transformers to accurately sense current without the need to modify the wiring of the existing installation.

Vector registration method
The VM-3P75CT uses the vector registration method (the vectors of the individual phases L1, L2 and L3 are added together).
